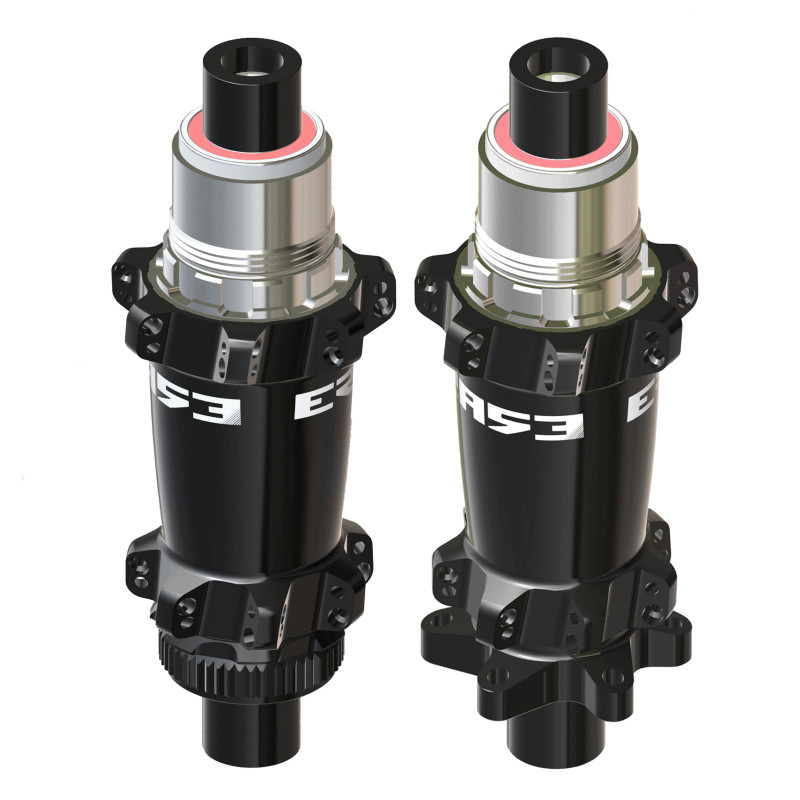

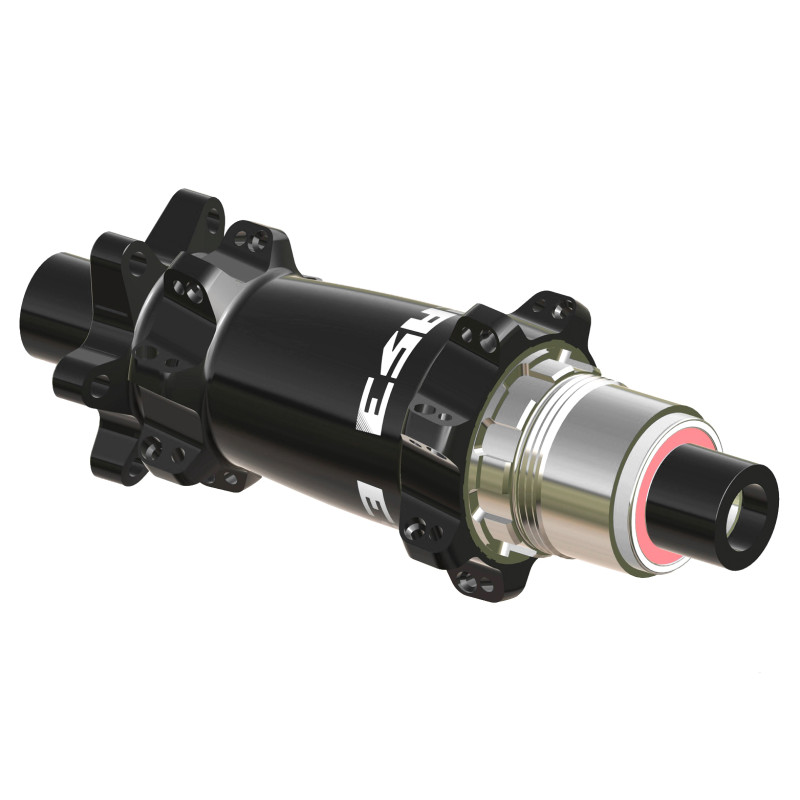

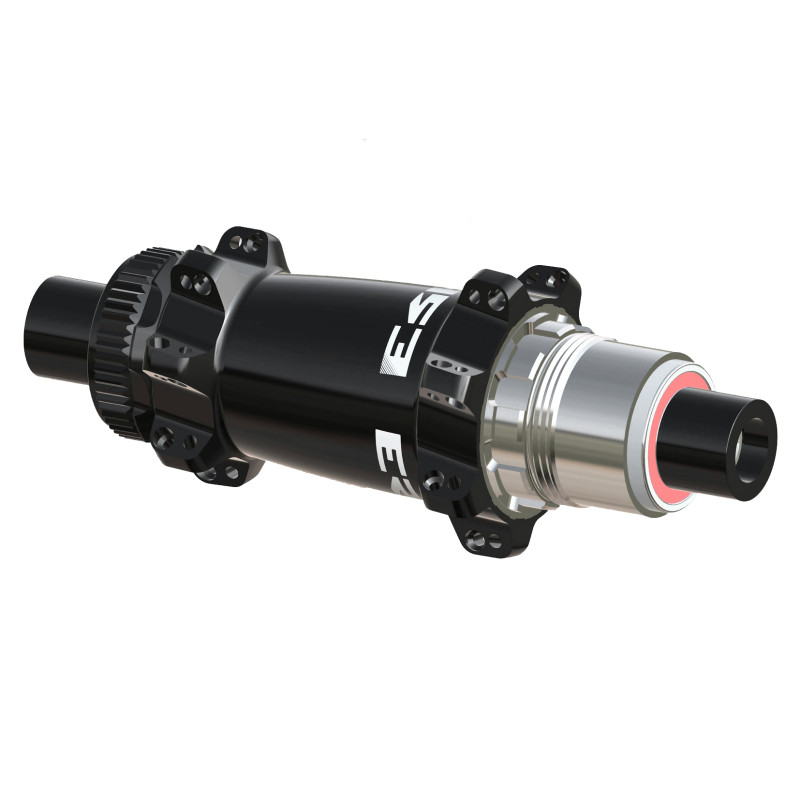

ERASE SP REAR HUB

Data sheet

FREEWHEEL TYPE

SHIMANO HG-11
SHIMANO MICROSPLINE
SRAM XD

NUMBER OF FREEWHEEL CRANS

60

TYPE OF BRAKING

DISC

SPOKES ANCHORAGE

STRAIGHT PULL

MAX STRAIN (N)

1300.0

PRACTICE TYPE

XC
XC ENGAGED

BEARING MATERIAL

STAINLESS STEEL

BEARING(S) SIZE

MS12 - 3X 6902 + 1X6802
SHIMANO HG11 - 4X 6902
SRAM XD - 4X 6902

FREEWHEEL MATERIAL

TITANIUM

POSITION

REAR

SYSTEM TYPE RATCHET

ERASE

LEFT / RIGHT FLANGE DIAMETER (MM)

ERASE CL SP BOOST - 42 / 49
ERASE IS SP BOOST - 42 / 49

LEFT / RIGHT POSITION (MM)

ERASE CL SP BOOST - 36,5 / 23
ERASE IS SP BOOST - 36,5 / 23

OFFSET LEFT AND RIGHT HOLES

ERASE CL SP BOOST - 1,4 / 1,4
ERASE IS SP BOOST - 1,4 /1,4

LEFT DIAMETER (MM)

42.0

RIGHT DIAMETER (MM)

49.0

LEFT POSITION

36.5

RIGHT POSITION

23.0

HOLE DIAMETER (MM)

2.5

OFFSET LEFT HOLES

1.4

OFFSET RIGHT HOLES

1.4

TYPE DE SYSTÈME ROUE LIBRE

RATCHET ERASE

HUB BRAND

MOYEU ERASE

WARRANTY

LIFE TIME
