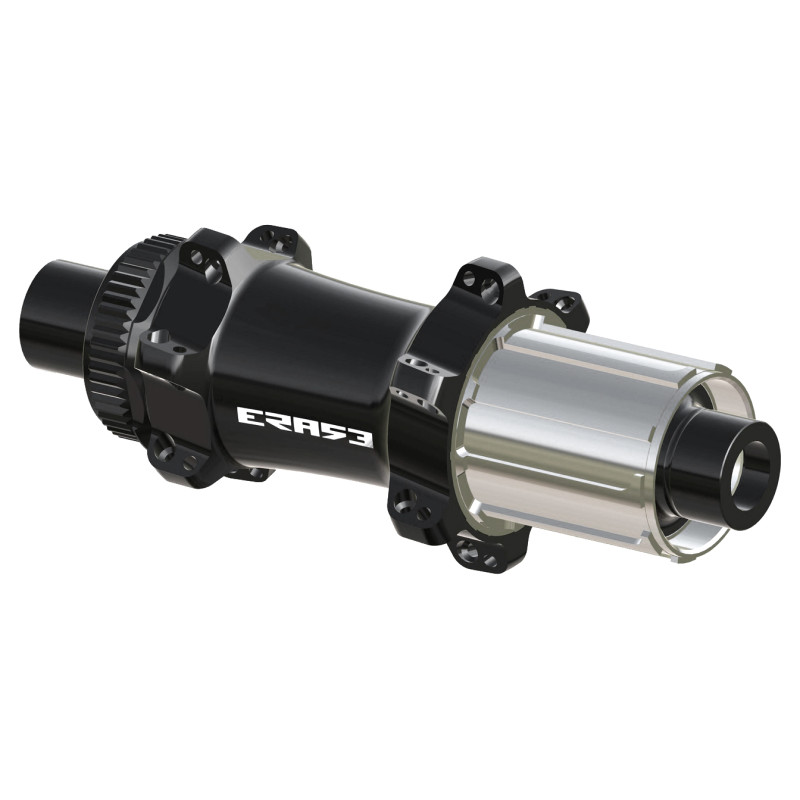

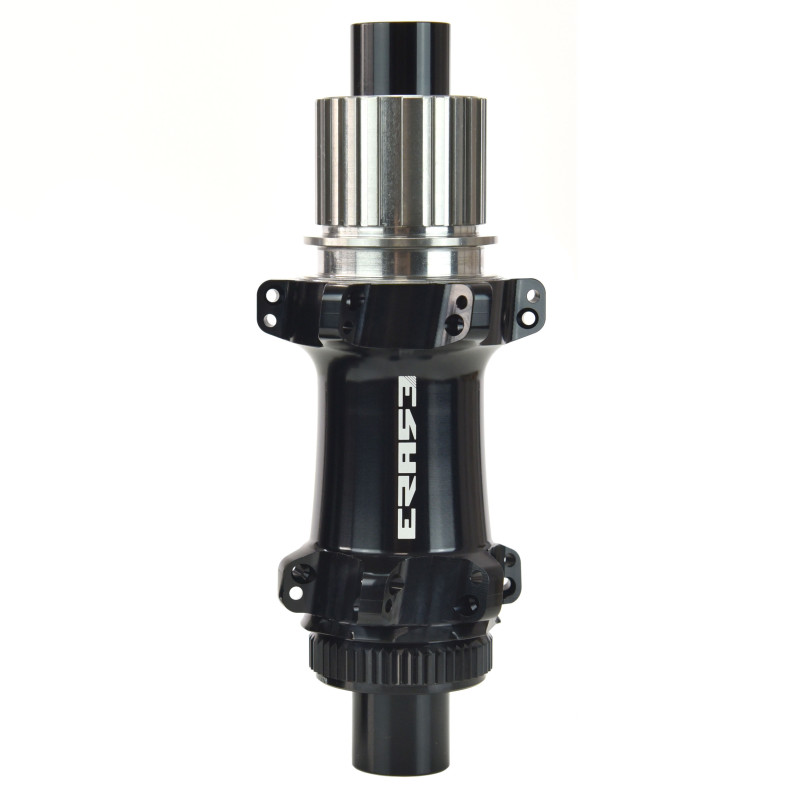

ERASE ROAD SP REAR HUB

Data sheet

FREEWHEEL TYPE

CAMPAGNOLO N3W
SHIMANO HG-11
SHIMANO MICROSPLINE R
SRAM XDR

NUMBER OF FREEWHEEL CRANS

36

TYPE OF BRAKING

DISC

SPOKES ANCHORAGE

STRAIGHT PULL

MAX STRAIN (N)

1300.0

PRACTICE TYPE

BEACH RACE
CX
GRAVEL BIKE
MOUNTAIN
ROAD
TRIATHLON&CLM

BEARING MATERIAL

STAINLESS STEEL

BEARING(S) SIZE

MSR - 3X 6902 + 1X6802
N3W : 2X 6902 + 2X 6802
N3W : 2X 6902 + 2X 6803
SHIMANO HG11 - 4X 6902
SRAM XDR - 4X 6902

FREEWHEEL MATERIAL

TITANIUM

POSITION

REAR

SYSTEM TYPE RATCHET

ERASE

LEFT / RIGHT FLANGE DIAMETER (MM)

ERASE CL SP - 42 / 49
ERASE CL SP - 42 / 50
ERASE CL SP - 42 / 51
ERASE CL SP - 42 / 52
ERASE CL SP - 42 / 53
ERASE CL SP - 42 / 54

LEFT / RIGHT POSITION (MM)

ERASE CL SP - 34 / 18

OFFSET LEFT AND RIGHT HOLES

ERASE CL SP - 1,2 / 1,1
ERASE CL SP - 1,5 / 1,4

HOLE DIAMETER (MM)

2.5

FREE WHEEL SYSTEM TYPE

RATCHET ERASE

HUB BRAND

MOYEU ERASE

WARRANTY

LIFE TIME
