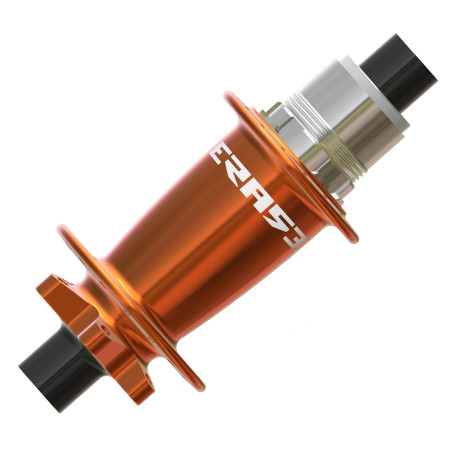

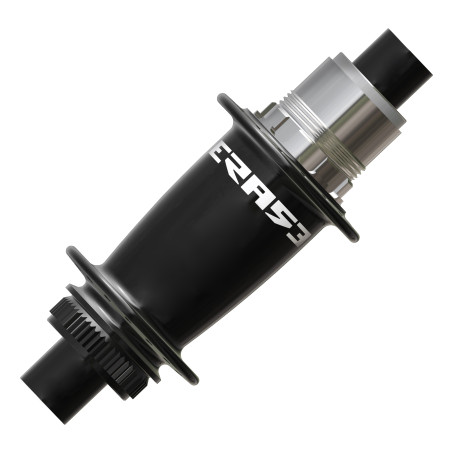

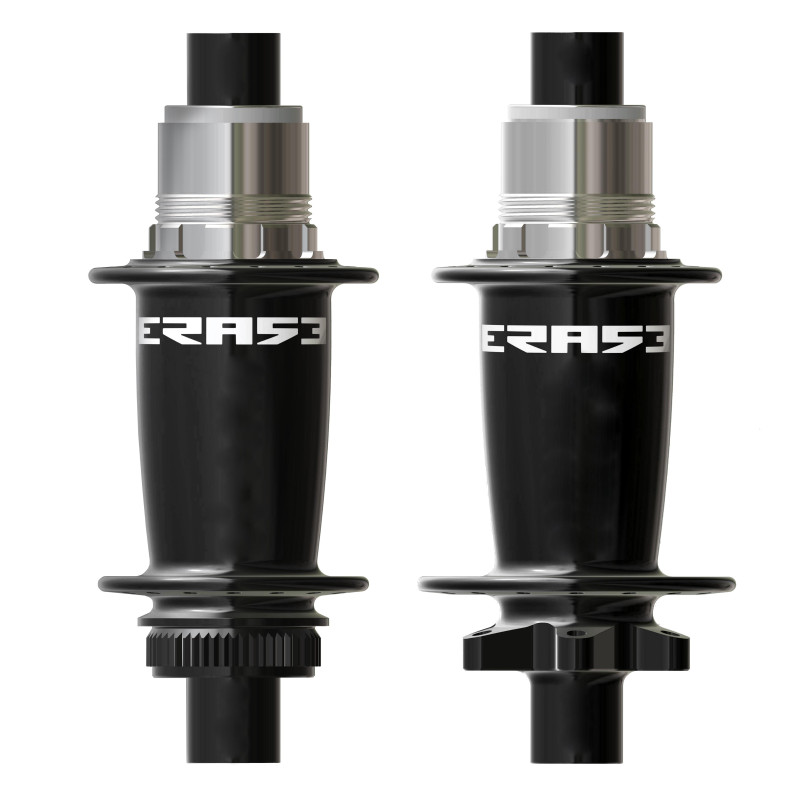

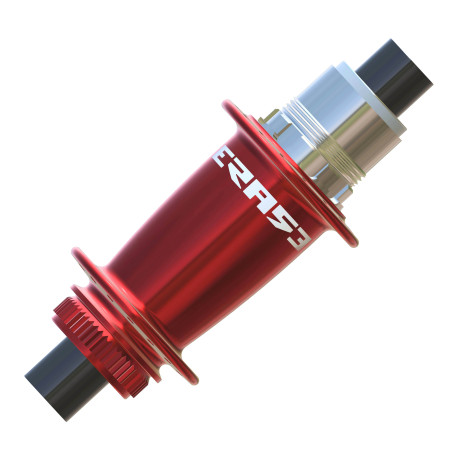

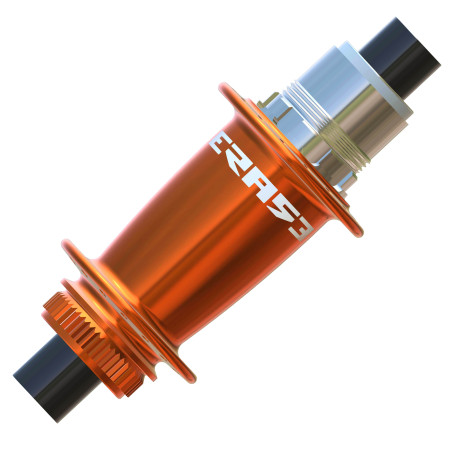

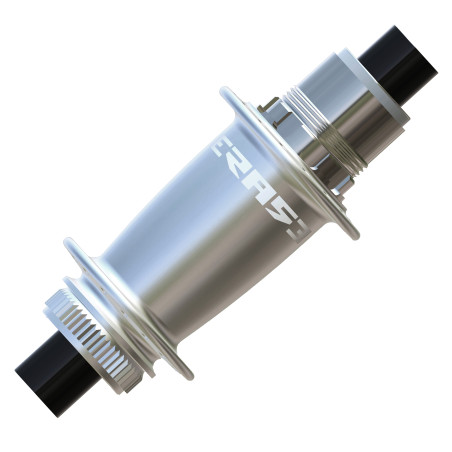

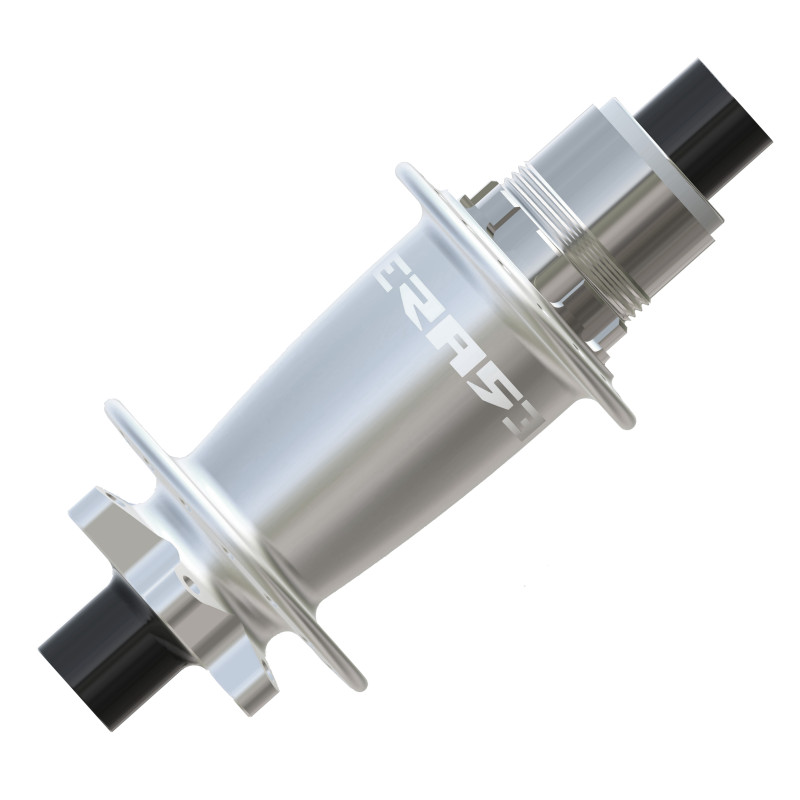

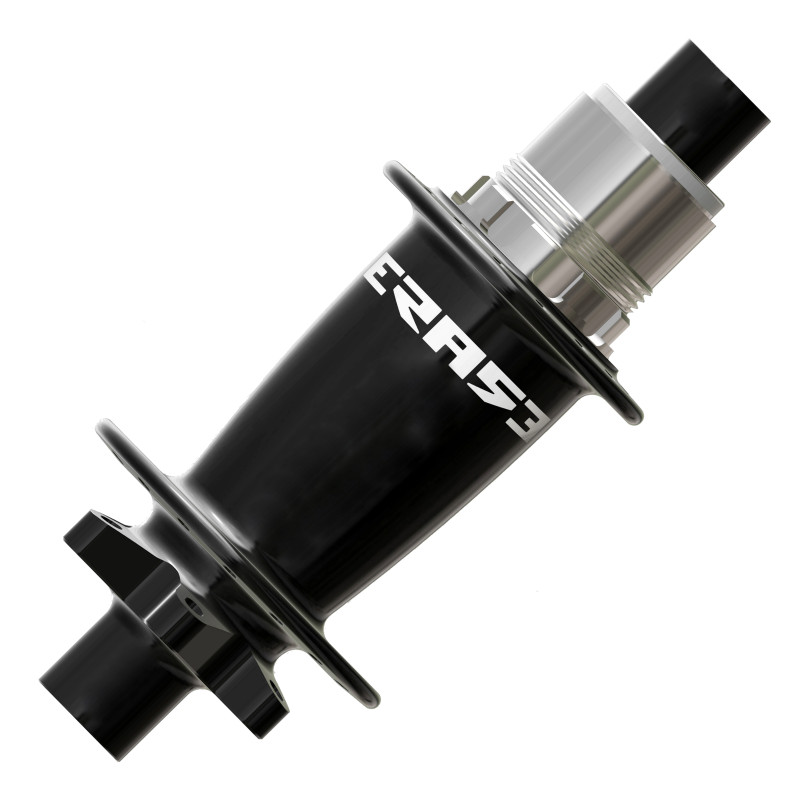

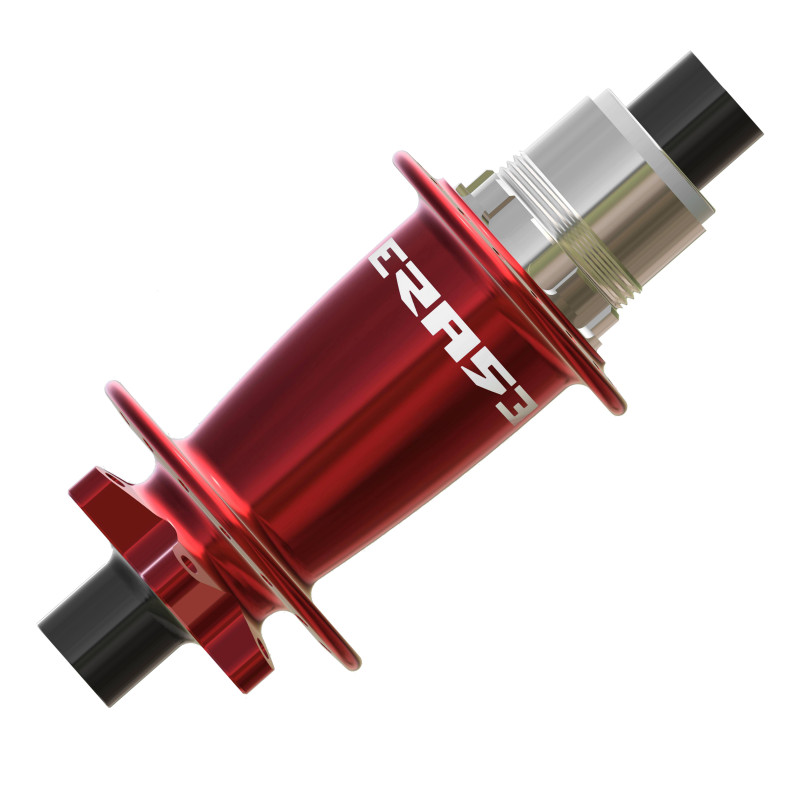

ERASE REAR HUB

Data sheet

FREEWHEEL TYPE

SHIMANO HG-11
SHIMANO MICROSPLINE
SRAM XD

NUMBER OF FREEWHEEL CRANS

60

TYPE OF BRAKING

DISC

SPOKES ANCHORAGE

J-BEND

MAX STRAIN (N)

1300.0

PRACTICE TYPE

ALL MOUNTAIN E-BIKE
AM
BEACH RACE
CX
DH
E-BIKE ENDURO
END
GRAVEL BIKE
TANDEM MTB
VAE GRAVEL
VAE XC
XC
XC ENGAGED

BEARING MATERIAL

STAINLESS STEEL

BEARING(S) SIZE

MS12 - 3X 6902 + 1X6802
SHIMANO HG11 - 4X 6902
SRAM XD - 4X 6902

FREEWHEEL MATERIAL

TITANIUM

POSITION

REAR

SYSTEM TYPE RATCHET

ERASE

LEFT / RIGHT FLANGE DIAMETER (MM)

ERASE CL BOOST - 46 / 50
ERASE CL BOOST - 56 / 50
ERASE IS - 56 / 50
ERASE IS BOOST - 56 / 50

LEFT / RIGHT POSITION (MM)

ERASE CL BOOST - 38 / 25
ERASE IS - 35 / 22
ERASE IS BOOST - 38 / 25

OFFSET LEFT AND RIGHT HOLES

ERASE CL BOOST - 0 / 0
ERASE IS - 0 / 0
ERASE IS BOOST - 0 / 0

TYPE DE SYSTÈME ROUE LIBRE

RATCHET ERASE

HUB BRAND

MOYEU ERASE

WARRANTY

LIFE TIME
