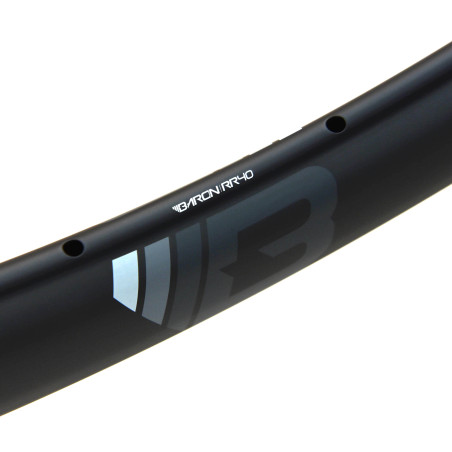

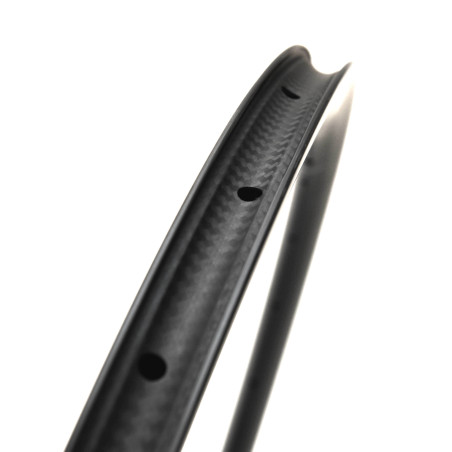

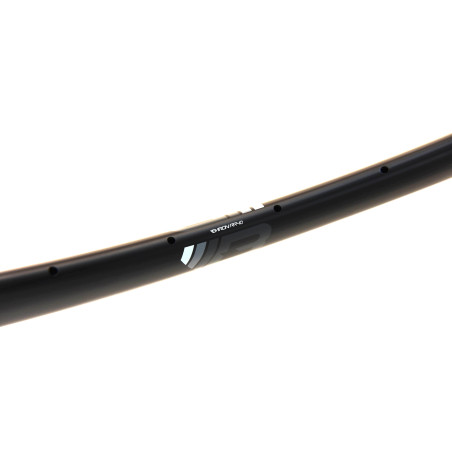

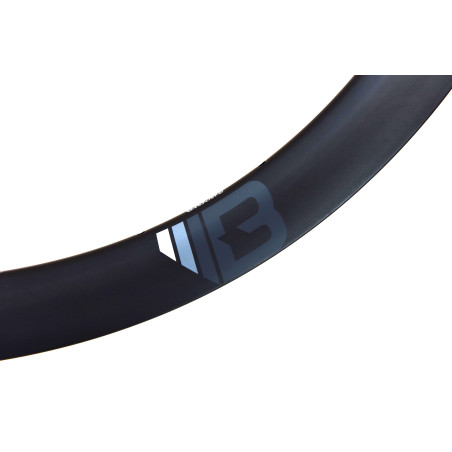

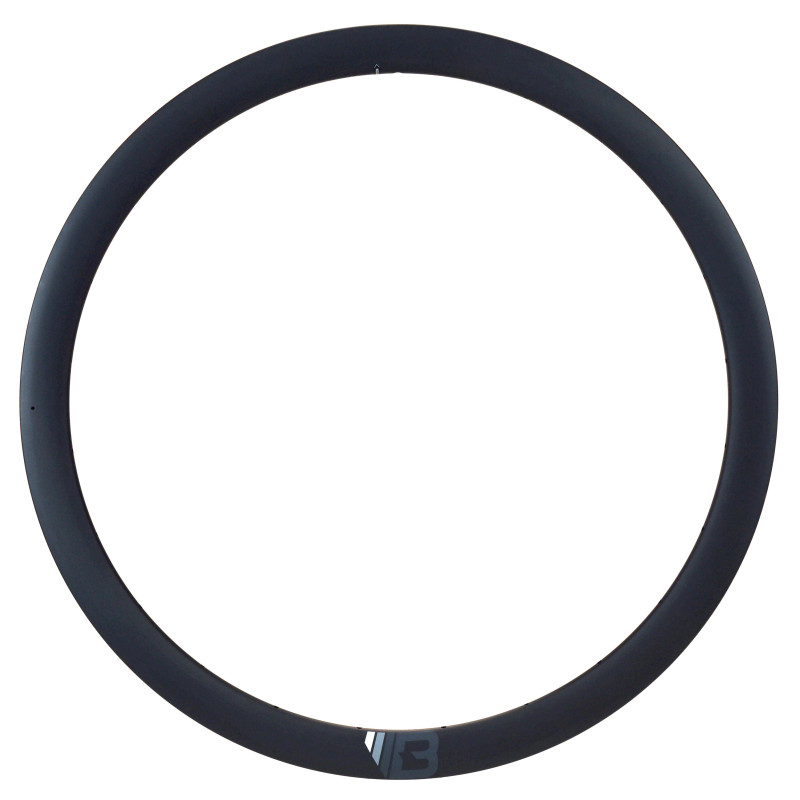

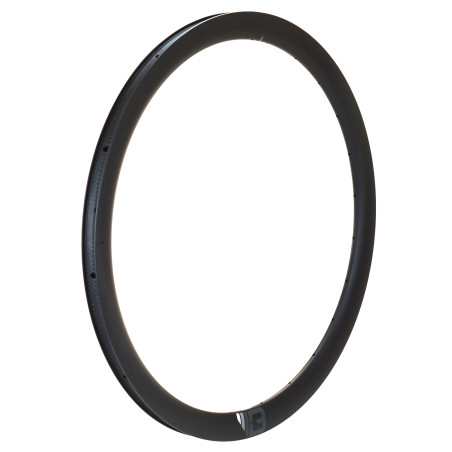

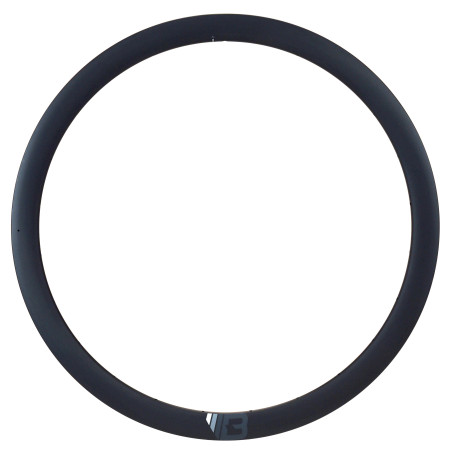

BARON RIM RR40

The Baron RR40 are carbon rims designed for road leisure and competition use. Versatile on all types of road, their internal width is 22mm for a height of 40mm. For competitors or cyclosportifs looking for performance. The RR40 offers excellent value for money.

Variantes disponibles
420 g
€318.00 Tax included
0 In stock

Expected shipping date: 03/06/2024

Quantity

favorite_border favorite

VERSATILITY - DURABILITY - STIFFNESS - TUBELESS READY - AERODYNAMICS - RIM WIDTH - OFFSET

The BARON RR40 rim is a clincher and tubeless-ready carbon rim for disc brakes, designed for leisure and competition road use, versatile on all types of road. Its 1.5mm asymmetrical profile opens up the spokes brace angle, increasing the wheel's lateral stiffness and stability without adding weight. The spoke tensions between the two sides are more balanced, guaranteeing greater wheel durability. The finish is matte UD carbon, a unidirectional carbon with no visible pattern. Weight: 420g. Only available in 24 holes. The 22mm internal width gives more volume to the tires, improving comfort and grip without sacrificing performance. Recommended tire widths are from 25mm to 32mm, tubeless or tubetype. However, the rim can accommodate tires from 25mm 1.00" to 53mm 2.10" cross-section. Tubeless-compatible rim (UST system, Tubeless Ready). Requires rim tape and tubeless valve. Use of tubes is still possible. (tire+inner tube). BARON is a brand of JP RACING BIKE, which owns all their manufacturing tools.

Data sheet

RIM DIAMETER
700C
HOLES NUMBER
24
RIM MATERIAL
CARBON
RIM PROFILE
ASYMMETRICAL
INNER WIDTH
22
INSIDE WIDTH (MM)
22.0
RIM FINISH
UD MAT
TYPE OF BRAKING
DISC
MAX STRAIN (N)
1200.0
PRACTICE TYPE
CX
GRAVEL BIKE
MOUNTAIN
ROAD
TRIATHLON&CLM
NIPPLE POSITION
EXTERNAL
NIPPLE HEIGHT (MM)
14.0
POSITION
FRONT
REAR
TYPE OF TYRE
CLINCHER
TUBELESS
VALVE HEIGHT (MM)
54
TAPE WIDTH (MM)
24.0
MAX PRESSURE (BAR)
7,5B AVEC PNEU 25MM
ERD JANTE(S)
RR40 : 566
SYSTEM MAX WEIGHT (KG)
120
RIM HEIGHT (MM)
40
ETRTO (MM)
622.0
RIM OFFSET (MM)
1.5
MOUNTING WITH WASHERS
NON
TYRE SECTION RANGE
25MM 1,00" / 53MM 2,10"
STICKERS RANGE
SANS
TYPE STICKER
SANS
WARANTEE
2 YEARS
Brand BARON
