BARON RIM RR54

Baron RR54 carbon rims are designed for road leisure and competition use. Versatile on all types of road, they have an internal width of 22mm and a height of 54mm. They are primarily designed for flat terrain, but their low weight means they can also be used on hilly roads. For competitors or cyclists looking for performance. The RR54 offers excellent value for money.

Variantes disponibles
490 g
€331.00 Tax included
4 In stock

Expected shipping date: 30/04/2024

Quantity

favorite_border favorite

VERSATILITY - DURABILITY - STIFFNESS - TUBELESS READY - AERODYNAMICS - RIM WIDTH - OFFSET

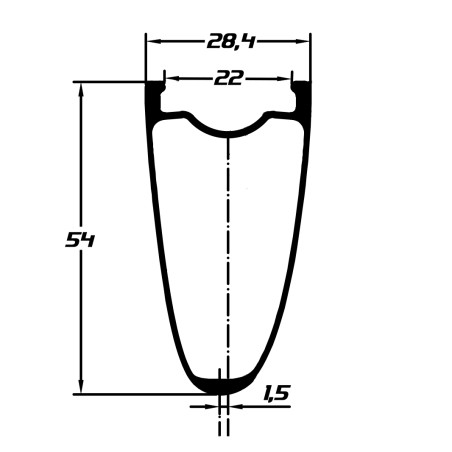

BARON RR54 is a tubeless-ready carbon rim for disc brakes. Its 1.5mm asymmetrical profile opens up the spoke brace angle, increasing lateral stiffness and wheel stability without adding weight. The spoke tensions between the two sides are more balanced, guaranteeing greater wheel durability. The wheel is primarily designed for flat terrain, but its low weight means it can also be used on hilly roads. For performance-minded competitors or cyclosportifs. The finish is matte UD carbon, a unidirectional carbon with no visible pattern. Weight: 490g. The 22mm internal width gives more volume to the tires, improving comfort and grip without sacrificing performance. Recommended tire widths are 25mm and 28mm, tubeless or tubetype. However, the rim can accommodate tires from 25mm 1.00" to 53mm 2.10" cross-section. Tubeless-compatible rim (UST system, Tubeless Ready). Requires rim tape and tubeless valve. Use of tubes is still possible. (tire+inner tube). BARON is a brand of JP RACING BIKE, which owns all their manufacturing tools.

Data sheet

RIM DIAMETER
700C
HOLES NUMBER
24
RIM MATERIAL
CARBON
RIM PROFILE
ASYMMETRICAL
INNER WIDTH
22
INSIDE WIDTH (MM)
22.0
RIM FINISH
UD MAT
TYPE OF BRAKING
DISC
MAX STRAIN (N)
1200.0
PRACTICE TYPE
ROAD
TRIATHLON&CLM
NIPPLE POSITION
EXTERNAL
NIPPLE HEIGHT (MM)
14.0
TYPE OF TYRE
CLINCHER
TUBELESS
POSITION
FRONT
REAR
VALVE HEIGHT (MM)
71
TAPE WIDTH (MM)
24.0
MAX PRESSURE (BAR)
7,5B AVEC PNEU 25MM
ERD JANTE(S)
RR54 : 536
SYSTEM MAX WEIGHT (KG)
120
RIM HEIGHT (MM)
54
ETRTO (MM)
622.0
RIM OFFSET (MM)
1.5
MOUNTING WITH WASHERS
NON
TYRE SECTION RANGE
25MM 1,00" / 53MM 2,10"
STICKERS RANGE
SANS
TYPE STICKER
SANS
WARANTEE
2 YEARS
