DUKE RIM LUCKY STAR ULTRA 28 :

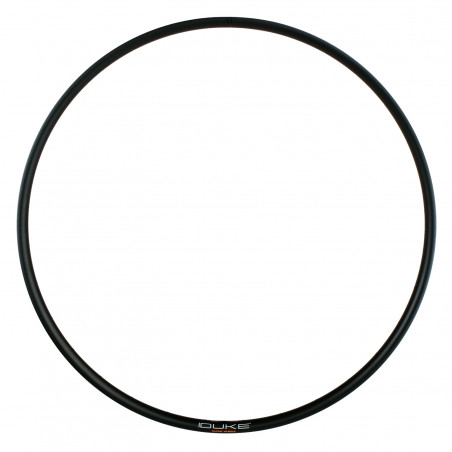

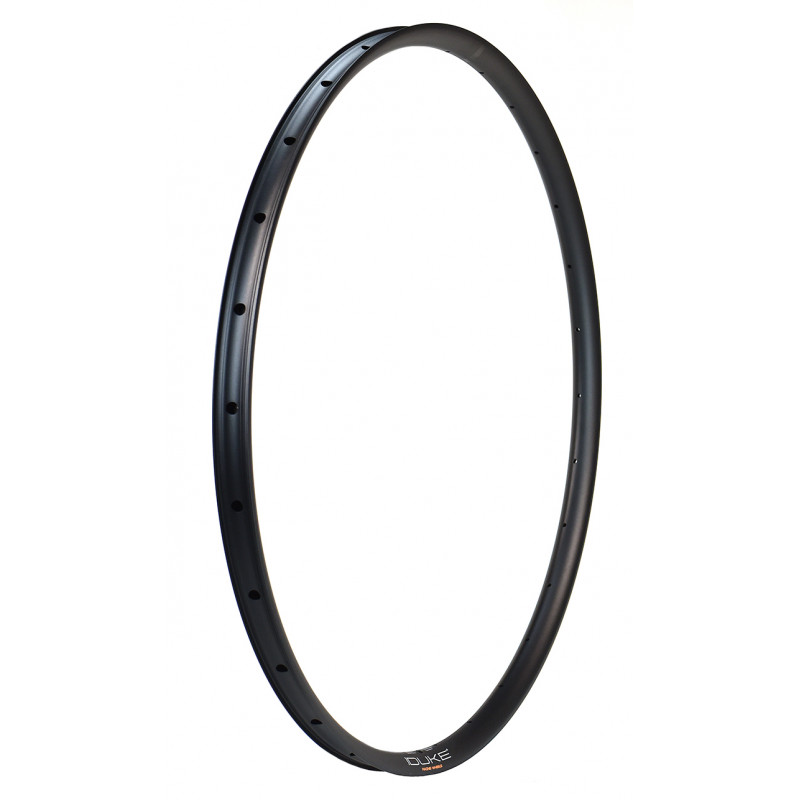

The Lucky Star Ultra is a lightweight aluminum rim with a large internal width of 28mm for pure XC use. It is characterised by its unrivalled stiffness/weight and strength/weight ratios, thanks to its profile and Dynamal aluminium.
Must be mounted with Pillar PW7048 washers. Sold with washers.

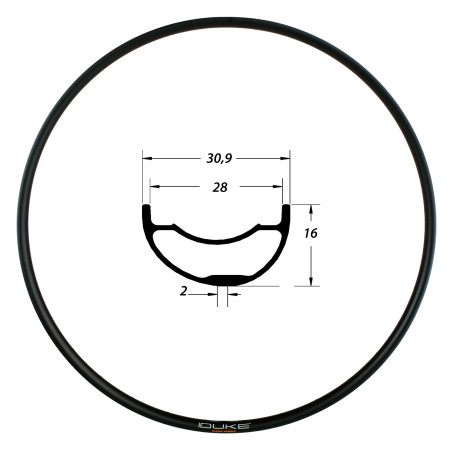

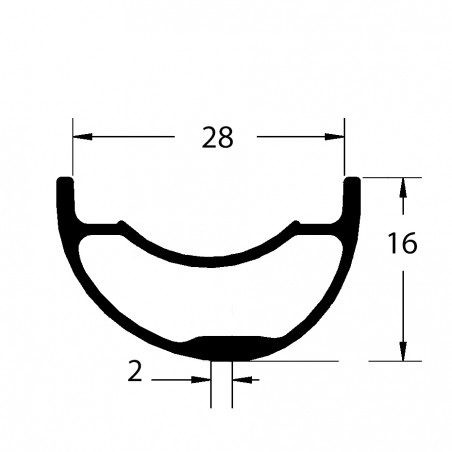

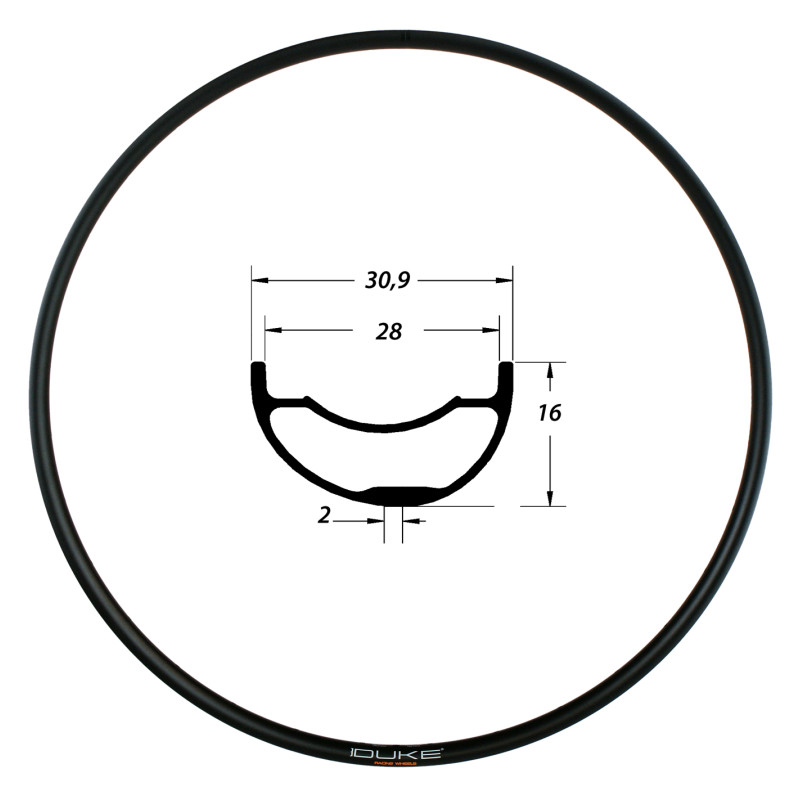

This rim inaugurates a new modern geometry lower and wider with an asymmetric profile and hookless walls. The rim holes are off-center (offset) and oriented. The offset makes a better spokes brace angle. The rim is more stable and the lateral stiffness of the wheel is increased. The spoke tensions between the two sides are more balanced, which guarantees a better durability of the wheel. The hookless rim walls allow rim reinforcement and weight reduction. Anti-burp system: the tire bead is kept in position whatever its pressure, no risk of air loss in the corners. DUKE owns its manufacturing tools. Technologies: Ultra, Anti-burp; Asymetric; Hookless; Dynamal; Oriented spoke holes; TLR; Lucky; Star; Duke french brand
Data sheet
- RIM MATERIAL
- ALU
- RIM PROFILE
- ASYMMETRICAL
- INSIDE WIDTH (MM)
- 28.0
- TYPE OF BRAKING
- DISC
- MAX STRAIN (N)
- 1050.0
- PRACTICE TYPE
- XC
- NIPPLE POSITION
- EXTERNAL
- NIPPLE HEIGHT (MM)
- 14.0
- REINFORCED RIM
- NO
- TYPE OF TYRE
- CLINCHER
TUBELESS - POSITION
- FRONT
REAR - VALVE HEIGHT (MM)
- 34
- TAPE WIDTH (MM)
- 30.0
- MAX PRESSURE (BAR)
- 2.8B WITH 2.25" TYRE
- ERD JANTE(S)
- LSU 28 29" : 605,5
- SYSTEM MAX WEIGHT (KG)
- 95
- RIM HEIGHT (MM)
- 16
- ETRTO (MM)
- 622.0
- RIM OFFSET (MM)
- 2.0
- MOUNTING WITH WASHERS
- OUI (PILLAR 7048)
- TYRE SECTION RANGE
- 42MM 1,65" / 64MM 2,50"
- STICKERS RANGE
- DUKE SERIE2 L
- TYPE STICKER
- L45
- WARANTEE
- 2 YEARS
