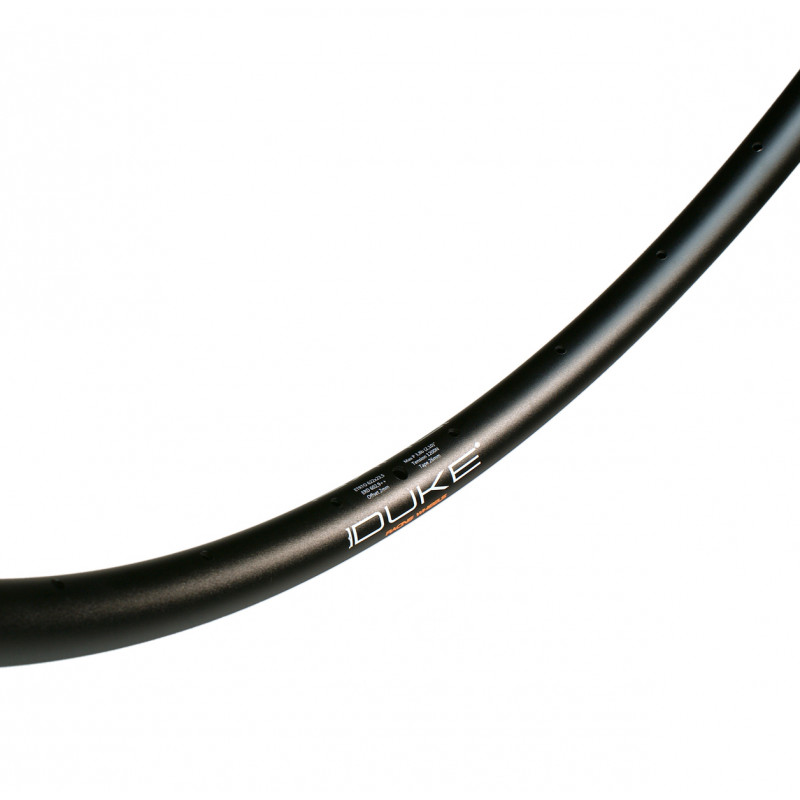

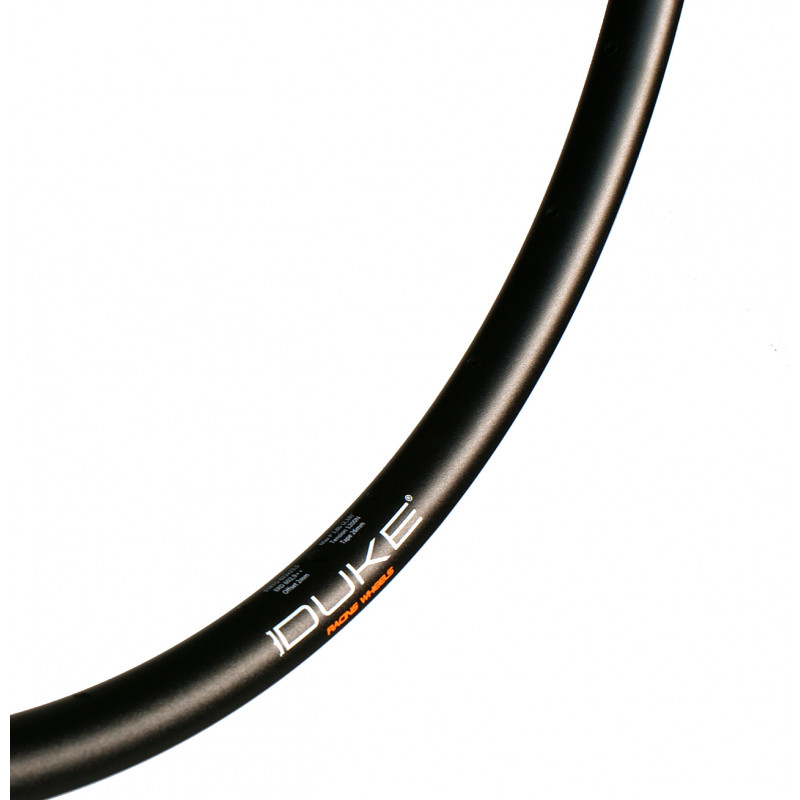

DUKE RIM LUCKY STAR ULTRA 23

DUKE RIMS LUCKY STAR Ultra Aluminium, versatile made for XC and Gravel bike

Variantes disponibles

RIM DIAMETER

HOLES NUMBER

RIM PROFILE

RIM FINISH

350 g

€119.00 -35%

€77.35 Tax included

In stock

Expected shipping date: 24/06/2025

Quantity

dealer locator

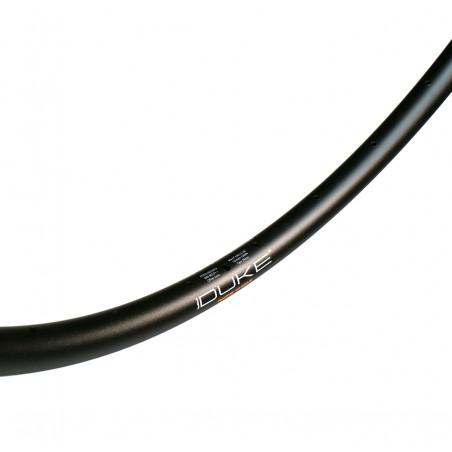

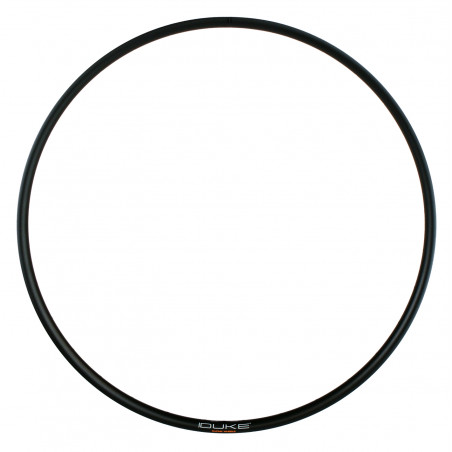

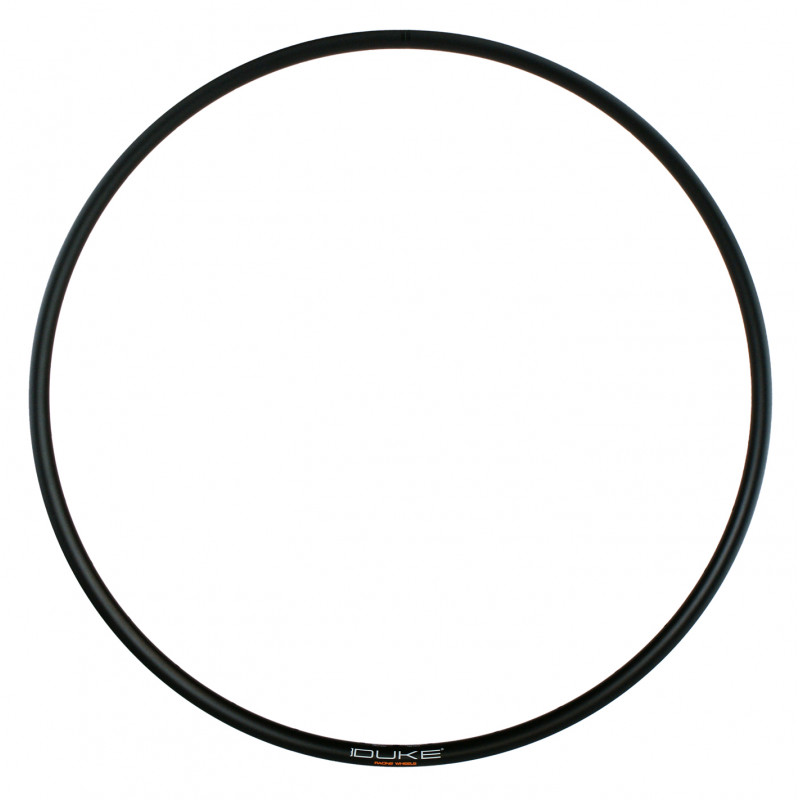

The Lucky Star Ultra is a lightweight pure XC aluminium rim. It is characterised by its unrivalled stiffness/weight and strength/weight ratios, thanks in part to the use of Dynamal aluminium.

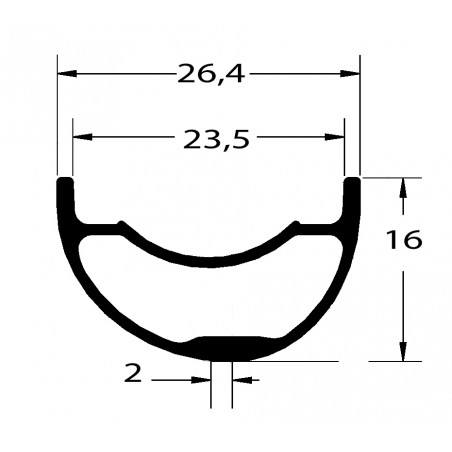

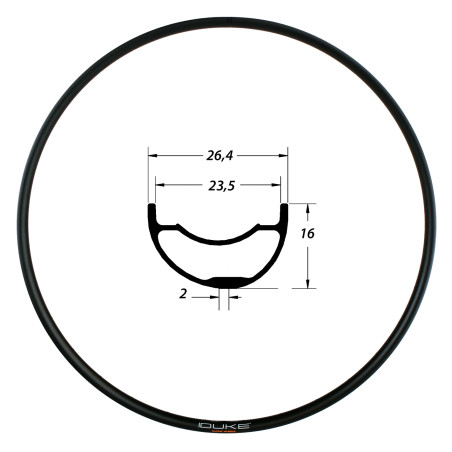

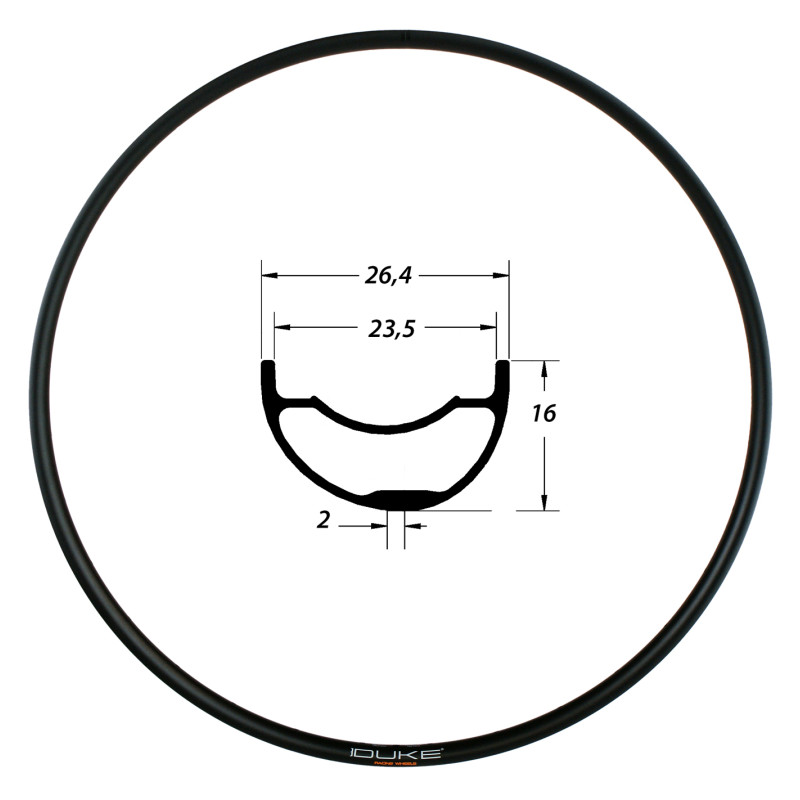

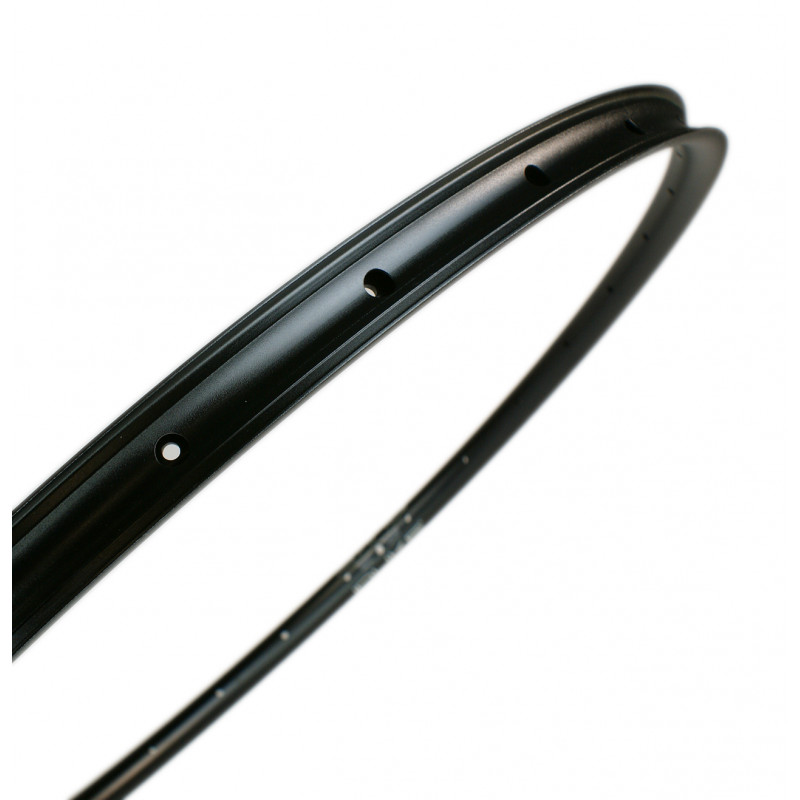

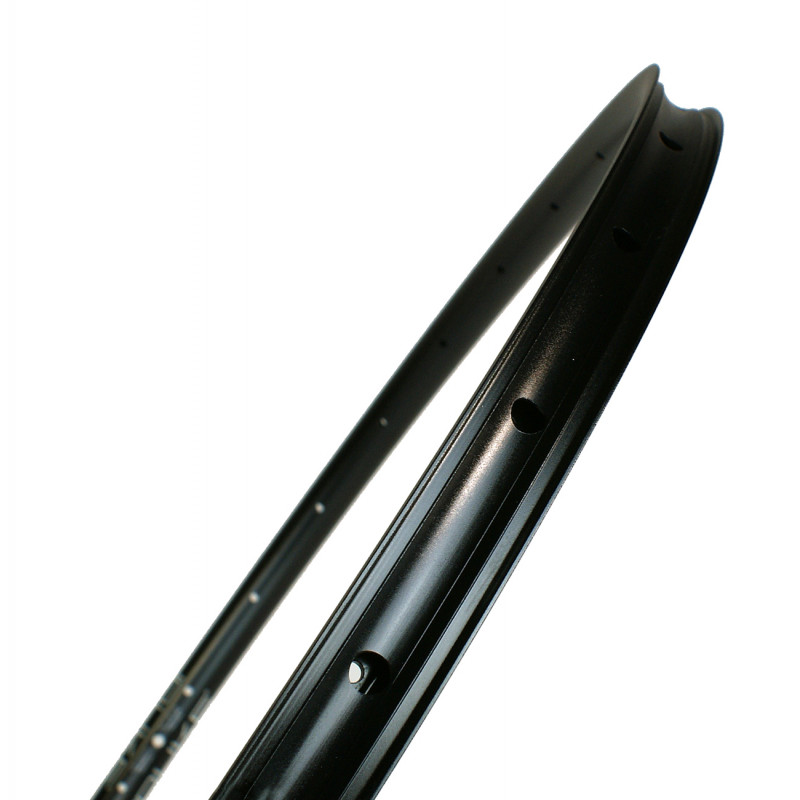

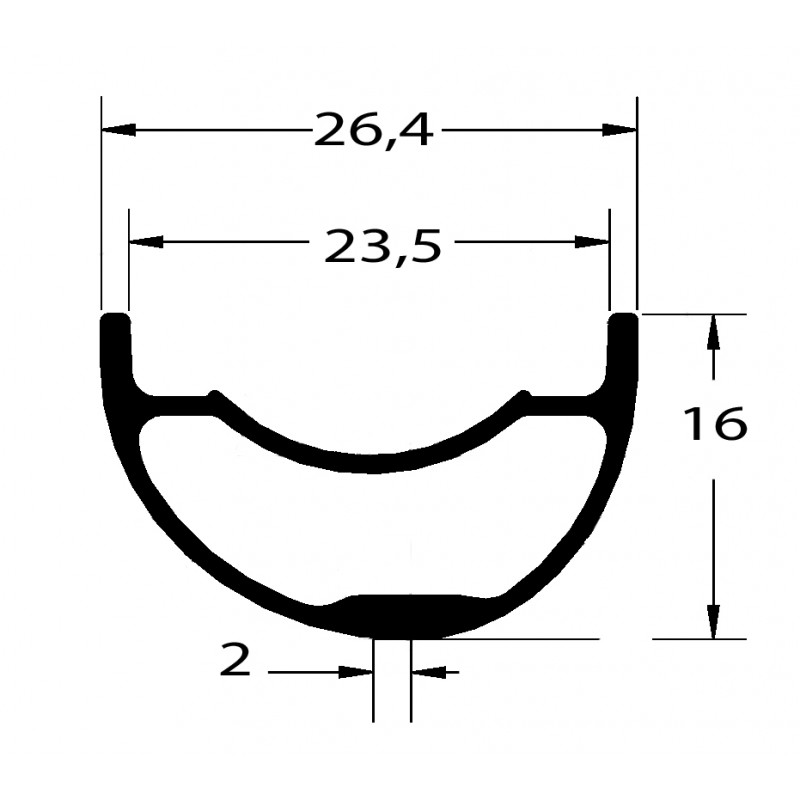

DUKE has created an innovative profile, following its own experience with a very strict specification.This rim inaugurates a new modern geometry with an asymmetric profile and hookless walls.The rim holes are off-centre (offset), which makes it possible to close the spoke umbrella more tightly. This rim is more stable and increases the lateral stiffness of the wheel.The spoke tensions between the two plies are more balanced, which guarantees a better durability of the wheel.The hookless rim walls allow for both rim reinforcement and weight reduction.

DUKE owns its manufacturing tools.

Data sheet

RIM MATERIAL: ALU
RIM PROFILE: ASYMMETRIC
RIM HEIGHT (MM): 16
SYSTEM MAX WEIGHT (KG): 95
INSIDE WIDTH (MM): 23.5
TYPE OF BRAKING: DISC
MAX STRAIN (N): 1050.0
PRACTICE TYPE: GRAVEL BIKE
XC
NIPPLE POSITION: EXTERNAL
NIPPLE HEIGHT (MM): 14.0
REINFORCED RIM: NO
TYPE OF TYRE: TUBELESS OU CHAMBRE À AIR
VALVE HEIGHT (MM): 34
TAPE WIDTH (MM): 26.0
MAX PRESSURE (BAR): 3B WITH 2.10" TYRE
ERD JANTE(S): LSU 23 24" 492
LSU 23 26" : 544
LSU 23 27,5" : 569
LSU 23 29" : 606
ETRTO (MM): 507.0
559.0
584.0
622.0
RIM OFFSET (MM): 2.0
MOUNTING WITH WASHERS: NO
RECOMMENDED SUP 85KG (PILLAR 7048)
POSITION: FRONT
REAR
TYRE SECTION RANGE: 30MM 1,20" / 60MM 2,35"
STICKER TYPE: L43
RIM BRAND: JANTE DUKE
WARRANTY: 2 YEARS
