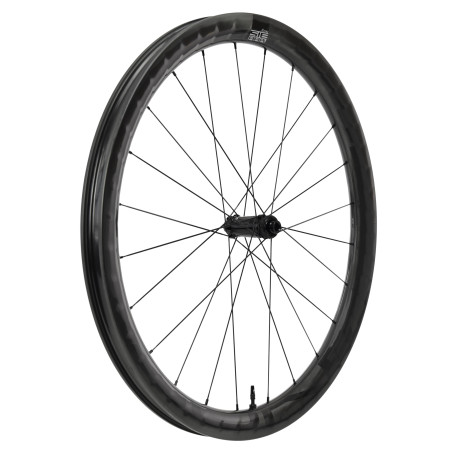

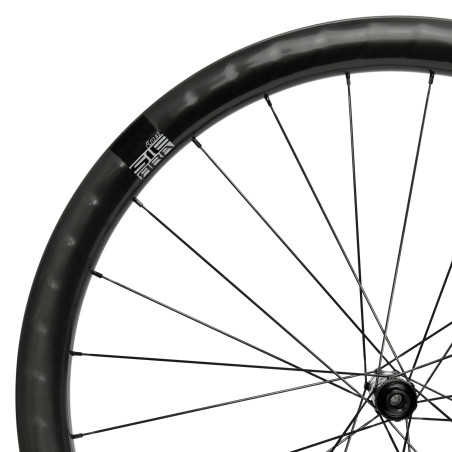

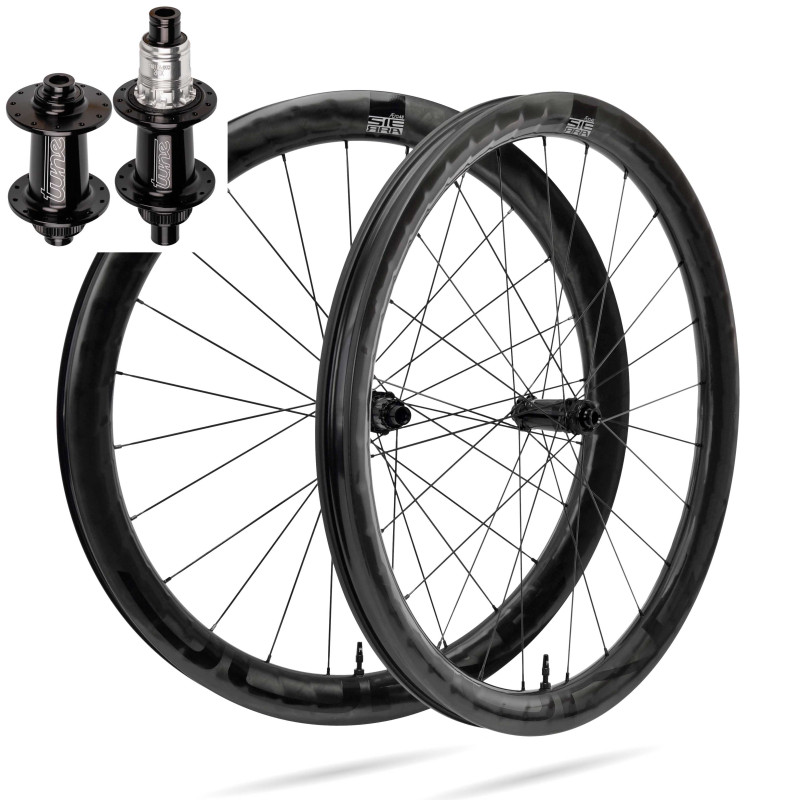

Wheel(s) DUKE SIERRA Æra W 42 / Æra 48 / TUNE MICRO

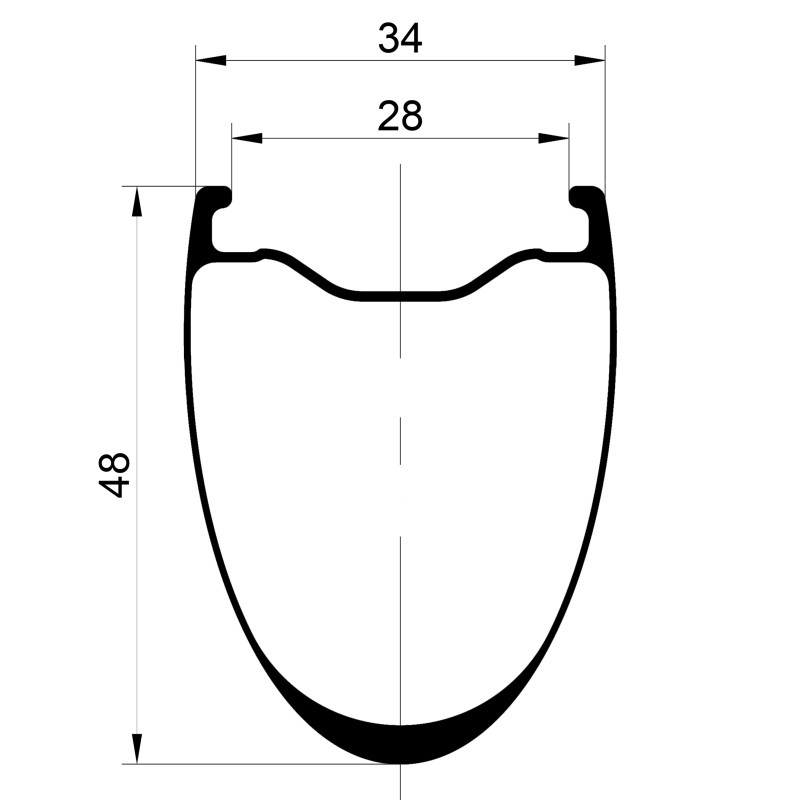

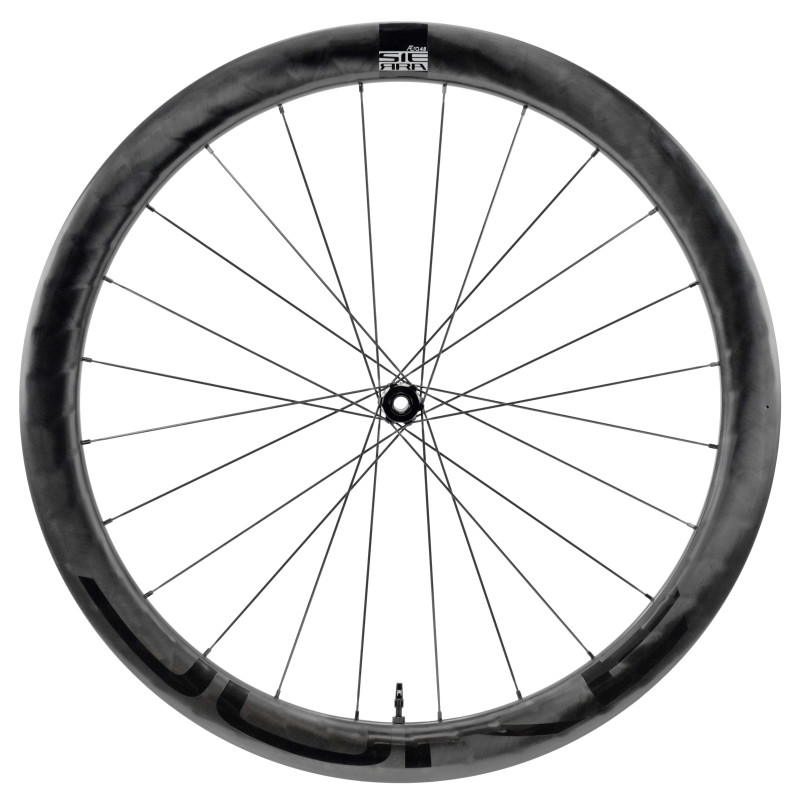

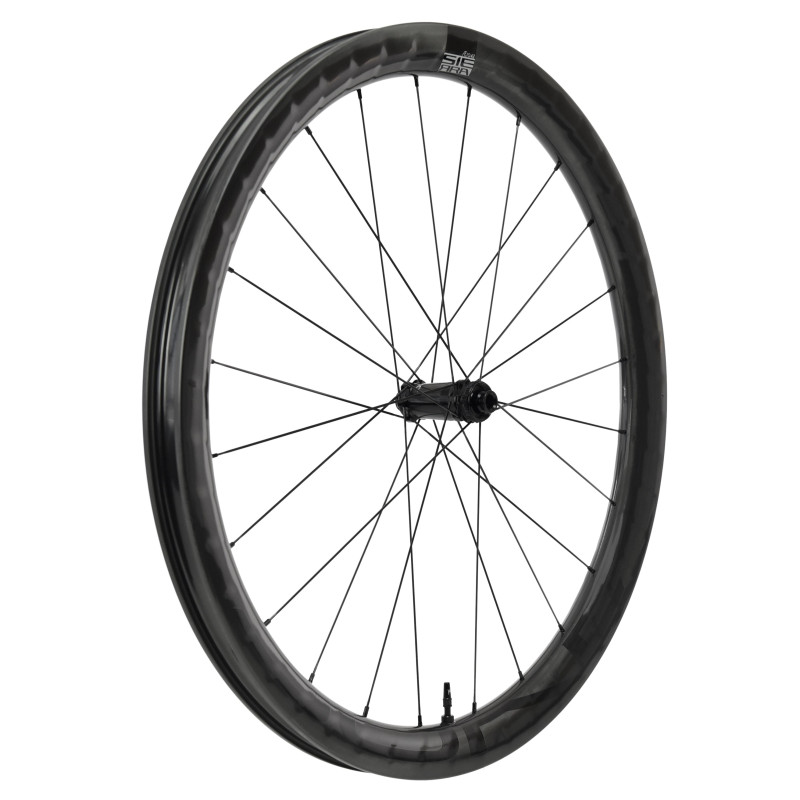

From 1281 g* of all-round aero gravel performance. Sierra Æra W42 / 48 combines a Sierra Æra W42 Wide front with a Sierra Æra 48 rear to give each wheel a clear role.
At the front: precision, stability and an optimised tyre-rim transition. At the rear: sustained speed, useful inertia and efficiency on long fast sections.
Key processes & technologies:
- 28 mm internal width optimised for modern gravel tyres**
- Æra CFD profile: signature relief reducing drag by up to 10% vs a smooth rim, with no loss of crosswind stability

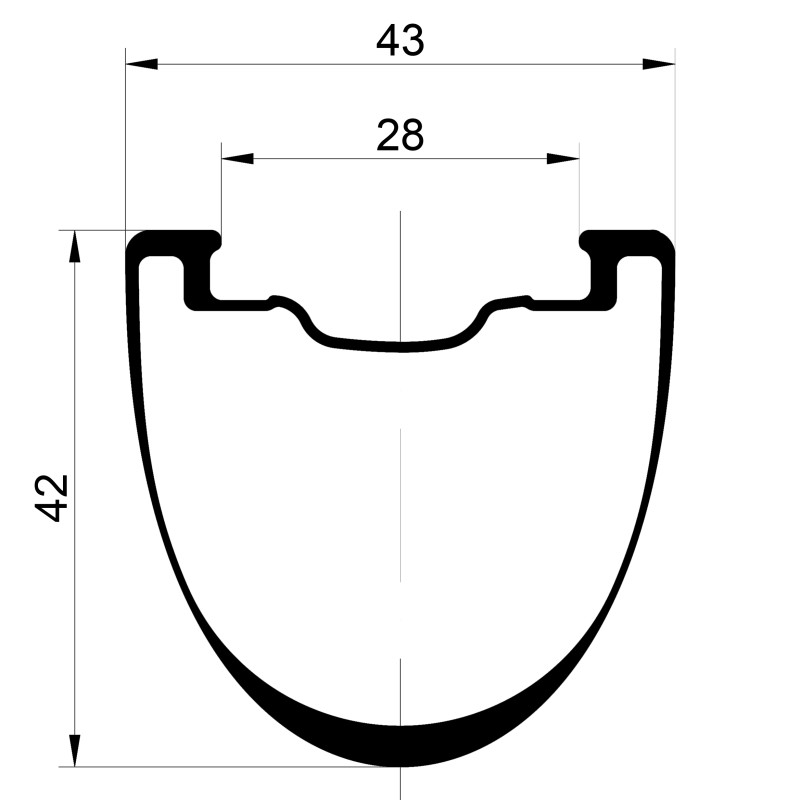

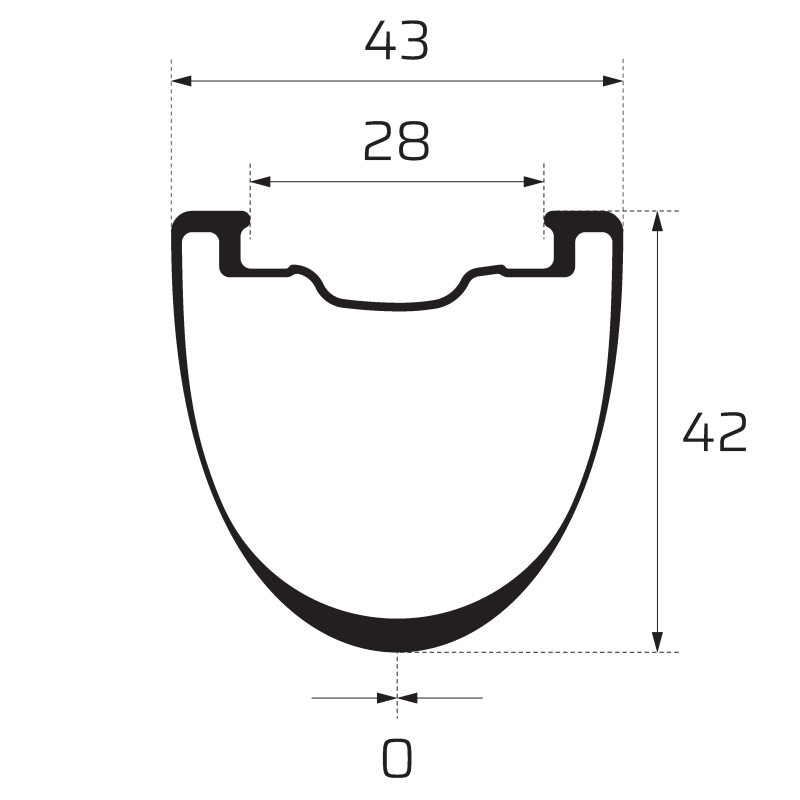

- Wide front profile: 43 mm external width to optimise the tyre-rim transition
- SLR5: advanced lay-up of Toray T1100 carbon fibres and aerospace-grade resin
- SpokeCore: moulded spoke holes (24h) for a more homogeneous structure
- VFP: clearcoat-free finish, more durable and more environmentally friendly
- DRC: vibration filtering for increased comfort and precision
- AntiPinch: anti-pinch rim beads to help prevent tyre cuts on impacts
- Hooked / Tubeless Ready: optimum safety and compatibility with modern tyres
Result:
A complete aero gravel wheelset, built for varied races, long fast sectors and real-world terrain where speed must remain compatible with control.
* Weight +/- 30 g for a wheelset built with NonPlus CL SP hubs and Sapim CX-Ray spokes.
** Optimal aero tyre width: 40 mm <> 45 mm. Compatible width: 40 mm <> 2.4" front, 36 mm <> 2.4" rear.
- CONFIGURATEUR
- SPECIFICATIONS
- TECHNOLOGIE
- SERVICE
CONFIGURATEUR
I want to configure :
I want to receive my wheels :
With :
Front wheel
Back wheel
Product customization
Don't forget to save your customization to be able to add to cart
Fast delivery and careful
International delivery
Delivery by Chronopost
Secure payment
SPECIFICATIONS
Supplier info
SIERRA-ÆRA-W42/48-TUNE/MICRO
Sapim Spokes
Sapim is THE go-to spoke brand, manufactured in Belgium since 1918. Several spoke models are available, depending on compatibility with your riding style and chosen rim:- Sapim CX-Ray: flat spoke, very light, durable, aerodynamic, and offers a very dynamic ride feel (309g / 64 pcs / 292mm)
- Sapim CX-Sprint: flat spoke similar to the CX-Ray but thicker for even more stiffness (373g / 64 pcs / 292mm)
- Sapim D-Light: round spoke, light and durable, with a central section diameter of 1.65mm, good value for money (344g / 64 pcs / 292mm)
- Sapim Race: round spoke, strong and stiff with a central section diameter of 1.8mm (408g / 64 pcs / 292mm)
Nipples
Aluminum nipples with locking thread, available in 16 colors: black, red, silver, metallic grey, blue, aqua blue, gold, light gold, dark green, mint syrup green, lime green, lilac, pink, fuchsia pink, orange, and oil slick.
Accessories
The wheels are delivered fully assembled with valves and rim tape installed, four spare spokes and nipples, and an assembly certificate.
TECHNOLOGIE
Technology
-
Oriented-drillings
AERA (Airflow optimization by CFD*)
- Signature aerodynamic micro-profile
- Disrupts airflow and reduces turbulence
- No deterioration in stability in crosswind conditions
* Computational fluid dynamics -
SLR5 (Super Light Road series 5)
SLR5 (Super Light Road series 5)
Exclusive manufacturing process combining optimized carbon fiber layup and aerospace-grade resin
- On average 20% lighter than the SLR2 generation
- Increased resistance to lateral stresses and vertical impacts
- Better vibration filtering for increased comfort and control -

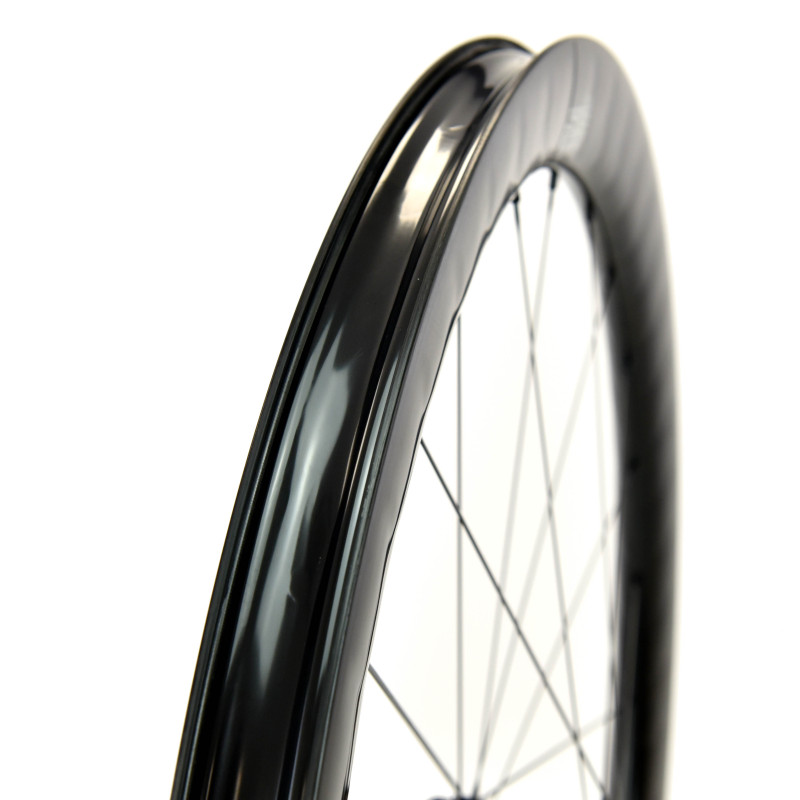

Hooked
Hooked
Hooked rim design
- Optimized for road and gravel tire pressures
- Ensures secure bead retention
- Wider internal width offers aerodynamic benefits -
DRC (Dynamic Response Comfort)
DRC (Dynamic Response Comfort)
Controlled vertical flex and rebound
- More dynamic handling during weight transfers and bermed corners
- Increased comfort on rough terrain
- Reduced energy loss, more speed and efficiency -
SpokeCore
SpokeCore
Molded spoke holes that eliminate the need for drilling
- Preserves carbon fiber integrity
- Reinforces the structure
- Allows for precise control of vertical and lateral stiffness
- Reduced weight and increased reliability -
Width
Optimized Internal Width
Maximizes tire volume and performance
- Enables lower pressures without sacrificing rolling efficiency
- Controls tire deformation for greater stability
- Improves control and comfort on all terrains -
VFP (Varnish Free Process)
VFP (Varnish Free Process)
A varnish-free finish process
- Reduces VOC emissions and carbon dust during production
- More scratch-resistant surface
- Naturally glossy finish -
AntiBurp
AntiBurp
Anti-burp and anti-debeading system
- Specially designed inner rim hooks lock the tire beads securely
- Eliminates air loss under heavy cornering or compression
- Prevents tire debeading, even in the event of a puncture -

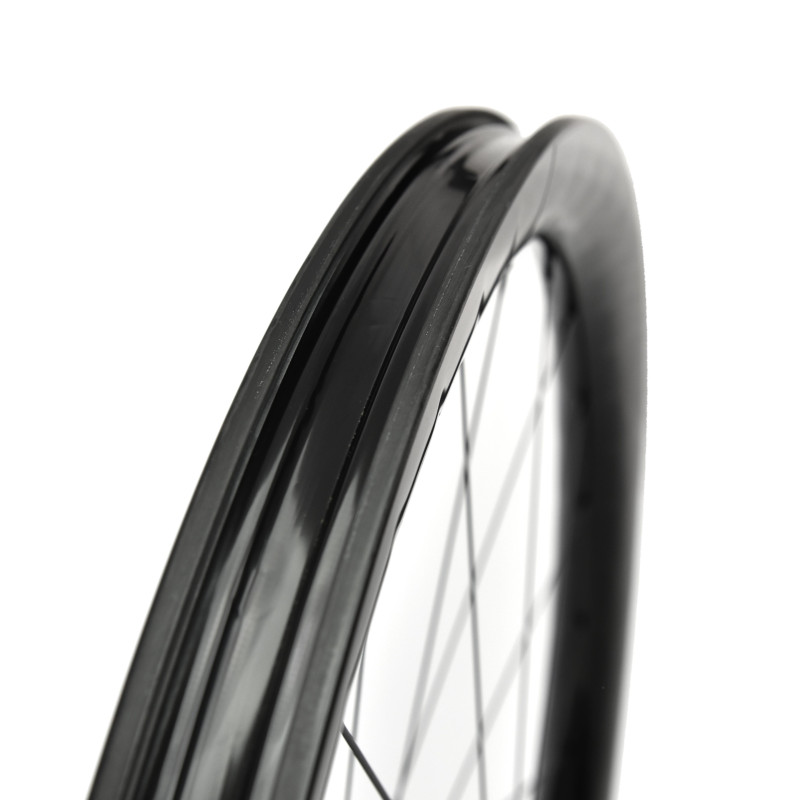

Anti-pinch
AntiPinch
Anti-pinch rim bead design
- Prevents tire cuts from hard impacts
- Dissipates shock energy
- Allows low-pressure riding without pinch-flat risks -
Tubeless Ready
Tubeless Ready
Tubeless-compatible rim design
- Compatible with UST and Tubeless Ready standards
- Also compatible with tube-type (clincher) setups
