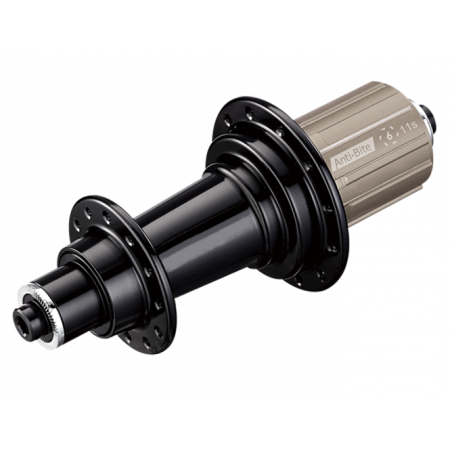

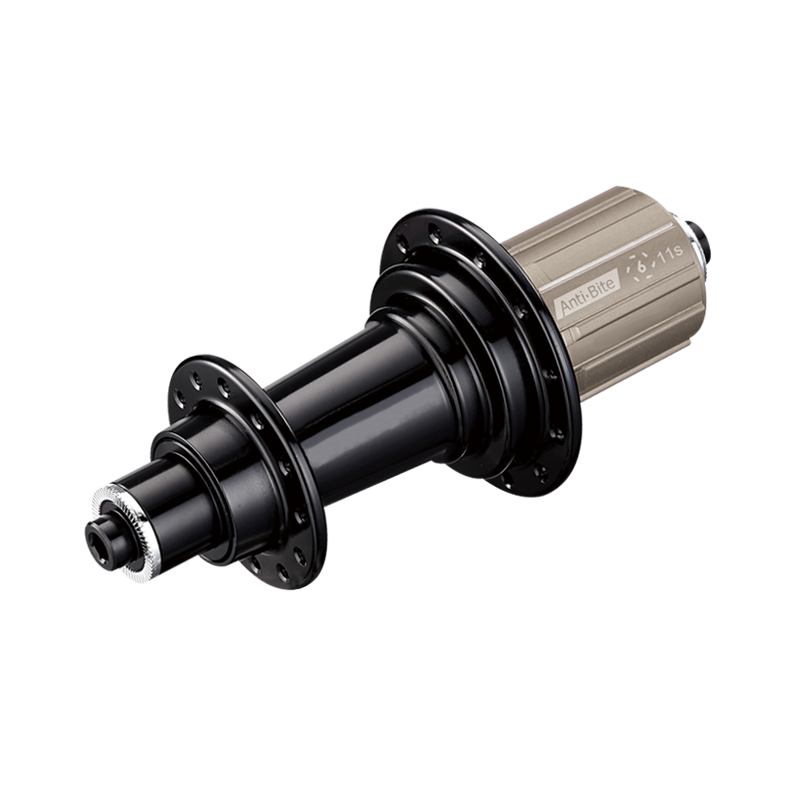

BITEX RAR12 REAR HUB
Bitex RAR12 rear hub
BITEX RAR 12 HUB
Hubs known for their excellent quality ratio
The hub is important because it is the main load bearing component of the bike. It carries the weight of the bike and the rider, with all the stresses that rest on the hubs. It is at the center of the bicycle's performance requirements, Bitex offers a wide range of hubs that provide:
- Freewheel body anti-marking system (shimano)
- Superior strength and stiffness
- Durability and reliability
- Very light weight
- Bearing performance (DT Swiss identical bearings)
- Safe value
- Excellent finish
- Shelving: bent spokes
- Drilling available: 24, 28, 32 and 8/16 holes
- Weight : 215g ± 5g
- Material : Aluminum
- Spoke gauge : 14G
- Bearings : 2x6802 2x6902
- Diameter : ø 38,5 - ø 50,6 dist 25,3
- Complete geometry in the download tab
- Axle : 130mmxQR5 (10x130mm)
- Shimano 10/11s or campy 11s
- 6 pawls, 48 notches
Data sheet
- FREEWHEEL TYPE
- CAMPAGNOLO 12
SHIMANO HG-11 - NUMBER OF FREEWHEEL CRANS
- 48
- TYPE OF BRAKING
- BRAKE PADS
- SPOKES ANCHORAGE
- J-BEND
- MAX STRAIN (N)
- 1300.0
- PRACTICE TYPE
- CX
GRAVEL BIKE
MOUNTAIN
ROAD
TRACK
TRIATHLON&CLM - BEARING MATERIAL
- STEEL
- BEARING(S) SIZE
- 1X 6802 + 1X 6902 (RAR12)
- FREEWHEEL MATERIAL
- ALU
- POSITION
- REAR
- HUB COLOUR
- BLACK
- SYSTEM TYPE RATCHET
- SANS
- LEFT DIAMETER (MM)
- 38.5
- RIGHT DIAMETER (MM)
- 50.6
- LEFT POSITION
- 37.7
- RIGHT POSITION
- 16.1
- HOLE DIAMETER (MM)
- 2.5
- OFFSET LEFT HOLES
- 0.0
- OFFSET RIGHT HOLES
- 0.0
- MATÉRIAU AXE
- ALU
- STICKERS RANGE
- ORIGIN
- TYPE DE SYSTÈME ROUE LIBRE
- 2X 3 CLIQUETS
- WARRANTY
- 2 YEARS
