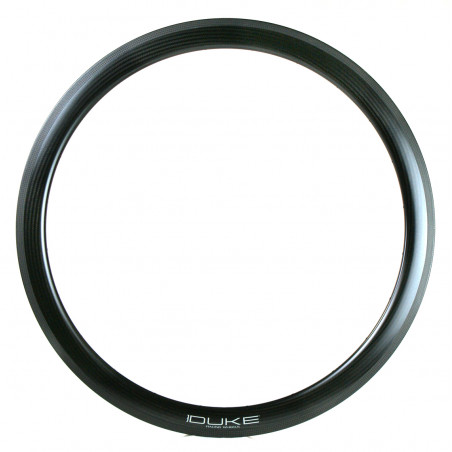

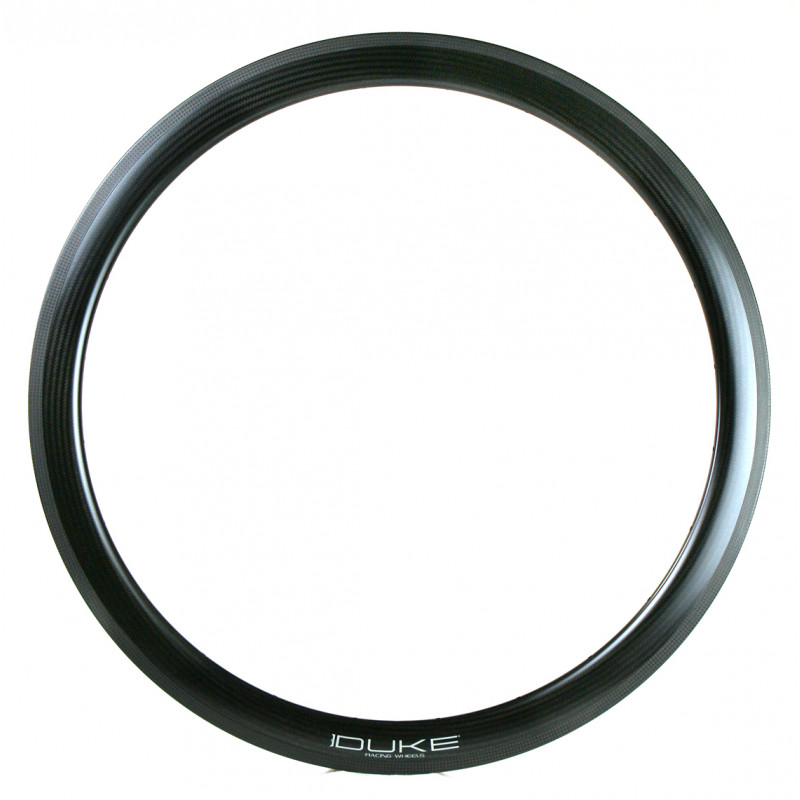

DUKE RIM BACCARA 45C 3K

Carbon wheel with tires and Tubeless. High-end carbon road rim. As comfortable on the flat as on the most hilly roads thanks to its contained weight. Its large width makes it very aerodynamic, stable and not sensitive to lateral wind.Use on roads.
Variantes disponibles
465 g
€379.00 -10%
€341.10 Tax included

1 In stock

Expected shipping date: 04/07/2025

Quantity

favorite_border favorite

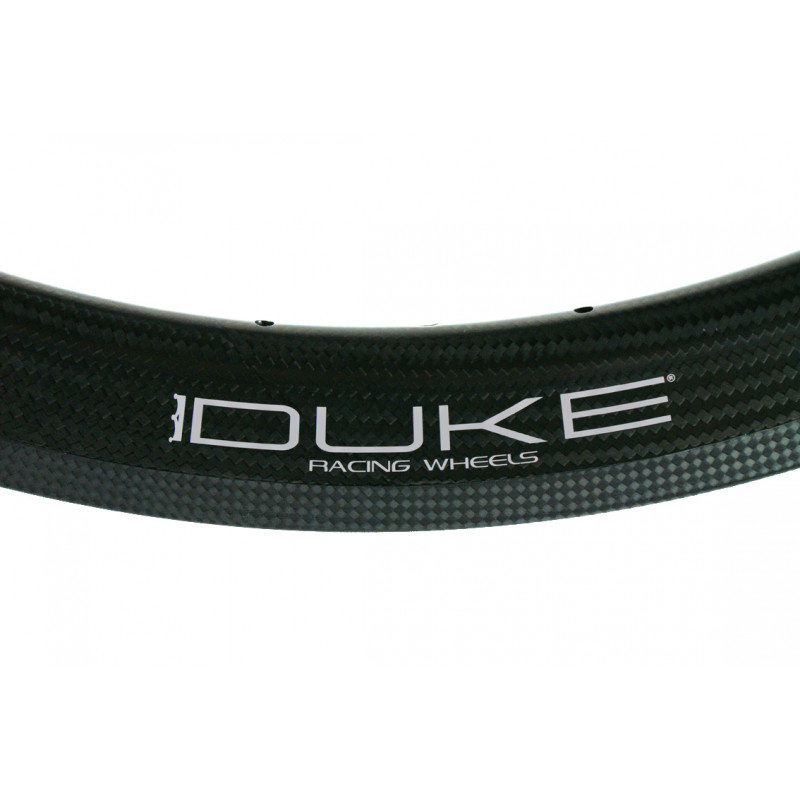

carbon DUKE Rim 3kdeveloped and tested in Vendée (France).

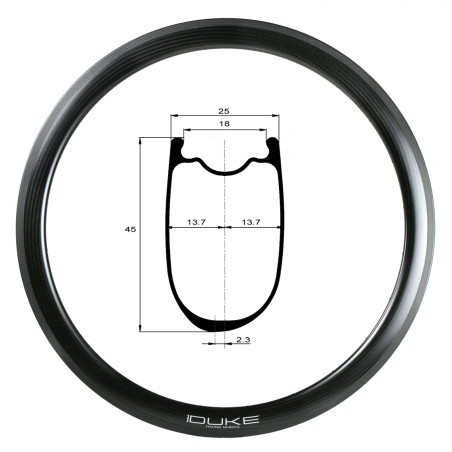

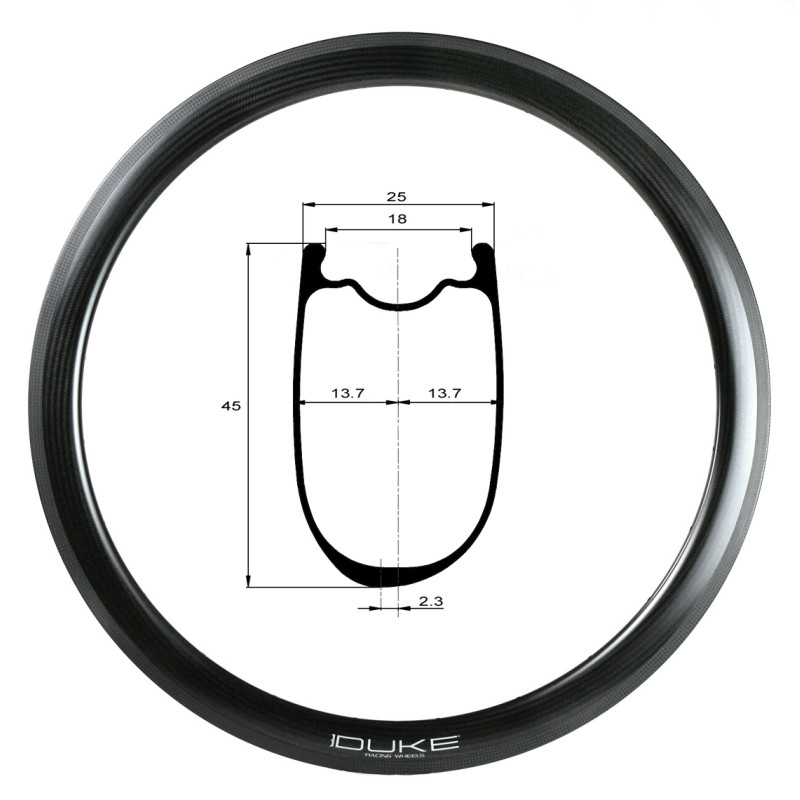

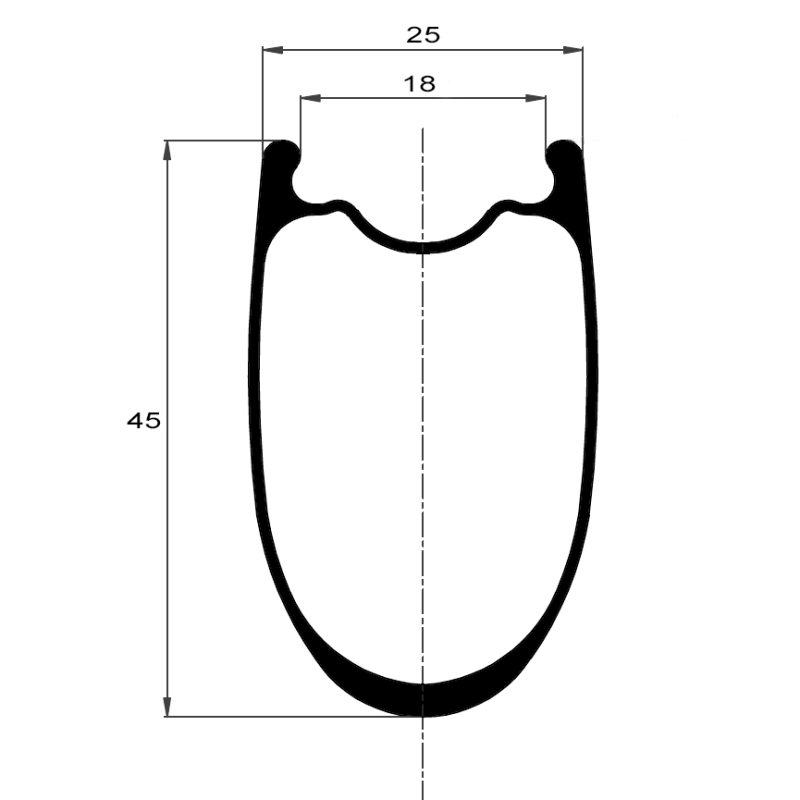

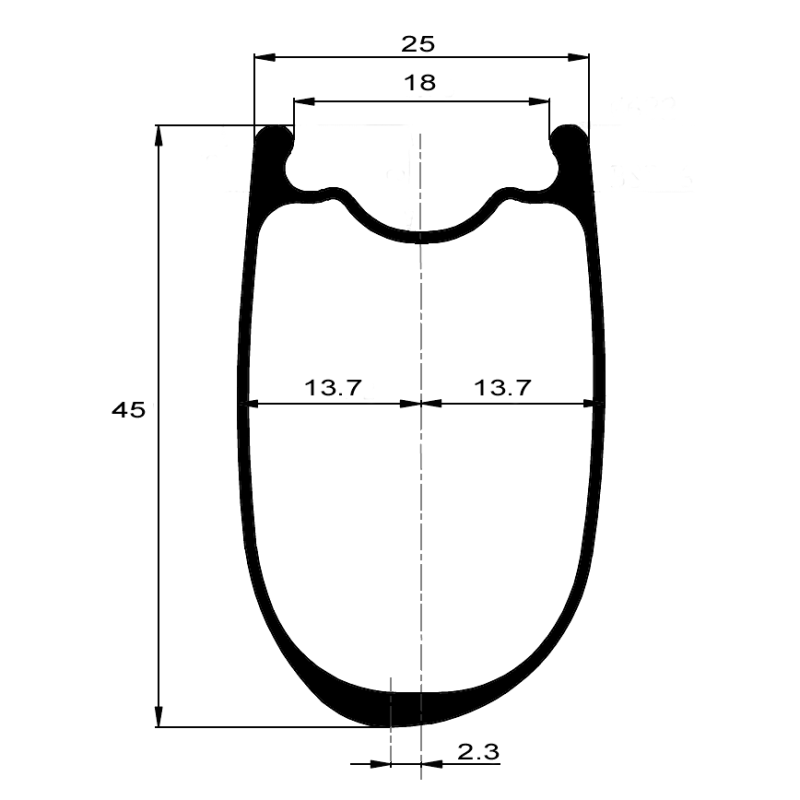

The DUKE Rim Baccara 45C carbon have a asymmetric profile:
With the increase in the number of speeds, The flange on the "cassette" side of the hub is increasingly "pushed" towards the inside of the wheel. The "umbrella" of the rays thus opens more and this results in the reduction of the lateral stiffness of the wheel: This one is blurred in the raises, takes of the veil easily ...
To reduce this phenomenon we have designed an asymmetric rim which will give a much larger "umbrella" than the symmetrical rims (2.3 mm offset) And will make it possible to rebalance the tensions of the two layers: More rigidity and more durability. Large width of 26mm: these are the modern widths. This reduces the aerodynamic drag and therefore increases its speed. The wheels are also less sensitive to lateral wind and the direction is more accurate, The cyclist feels more confident.

Data sheet

RIM MATERIAL
CARBON
RIM PROFILE
ASYMMETRIC
SYMMETRIC
RIM HEIGHT (MM)
45
SYSTEM MAX WEIGHT (KG)
105.0
INSIDE WIDTH (MM)
18.0
OUTER WIDTH (MM)
26.0
TYPE OF BRAKING
BRAKE PADS
MAX STRAIN (N)
1200.0
PRACTICE TYPE
CX
ROAD
TRIATHLON&CLM

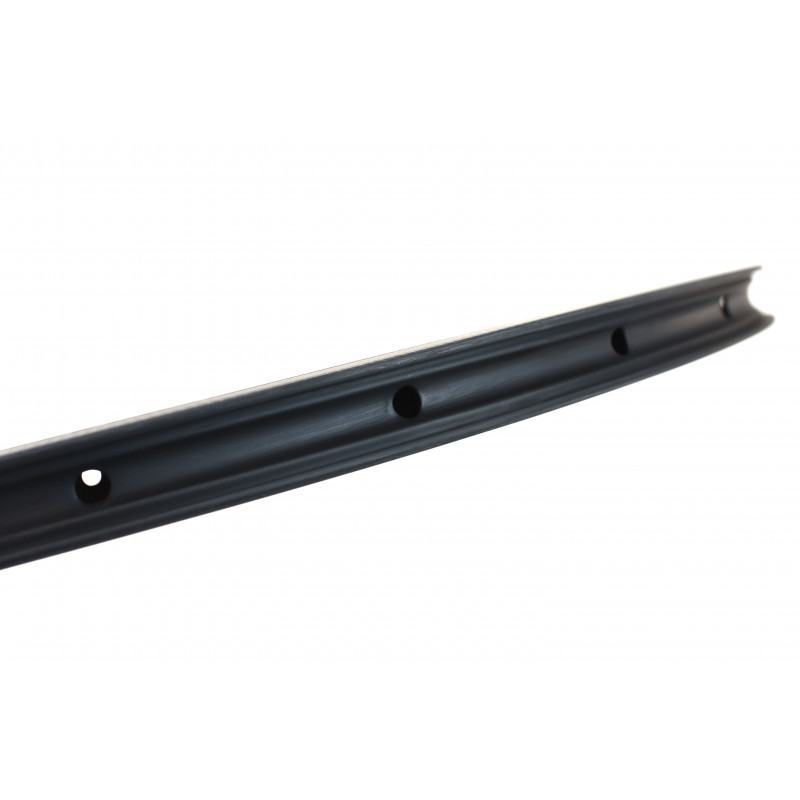

NIPPLE POSITION
EXTERNAL
NIPPLE HEIGHT (MM)
16.0
TYPE OF TYRE
TUBELESS OU CHAMBRE À AIR
VALVE HEIGHT (MM)
63
TAPE WIDTH (MM)
22.0
MAX PRESSURE (BAR)
8.5B WITH 25MM TYRE
ERD JANTE(S)
552.0
ETRTO (MM)
622.0
RIM OFFSET (MM)
2.3
MOUNTING WITH WASHERS
NO
POSITION
FRONT
REAR
TYRE SECTION RANGE
23MM 0,90" / 38MM 1,50"
STICKER TYPE
BACCARA 45 3K
RIM BRAND
JANTE DUKE
WARRANTY
2 YEARS
