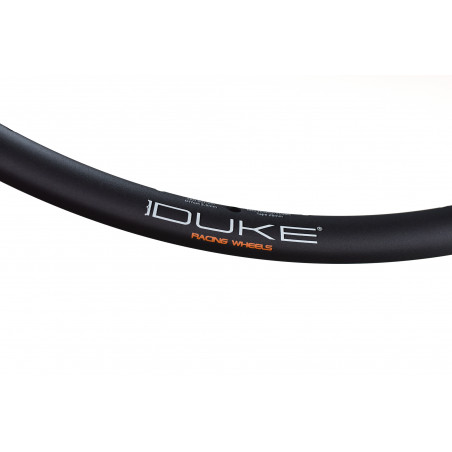

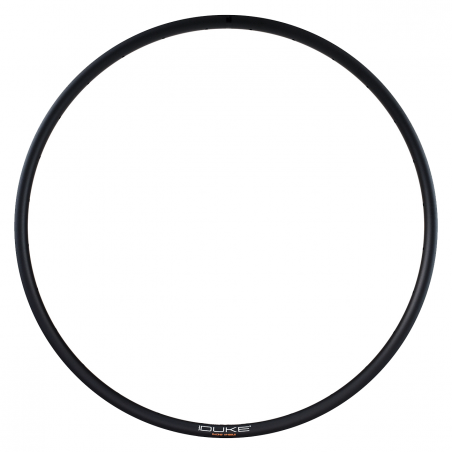

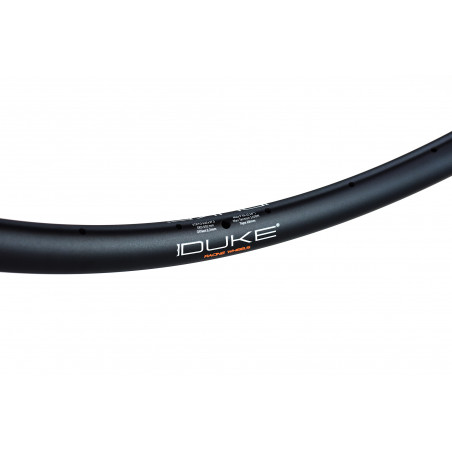

DUKE RIM FURY STAR HD
The Fury Star HD is an aluminum rim designed for intensive use in Enduro and DH.
The Fury Star HD is an aluminum rim designed for intensive use in Enduro and DH. Its internal width is 28.5mm. The rim is also compatible with E-bike.
These rims are used in the Enduro World Series and in the DH World Cup by the Team Commençal - Les Orres, the Team Scott SR-Suntour and by many other riders.
It is characterized by a lateral rigidity adapted to this use and offers an excellent strenght. The weight remains contained thanks to its profile and the Dynamal aluminum used.

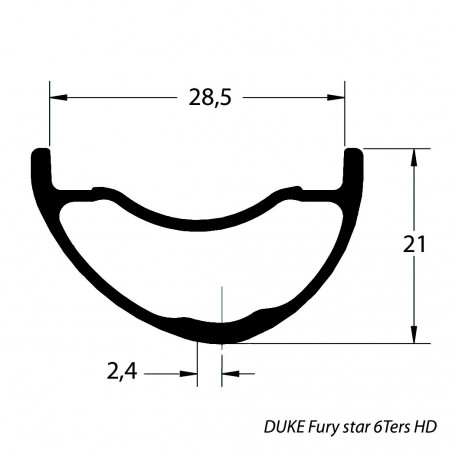

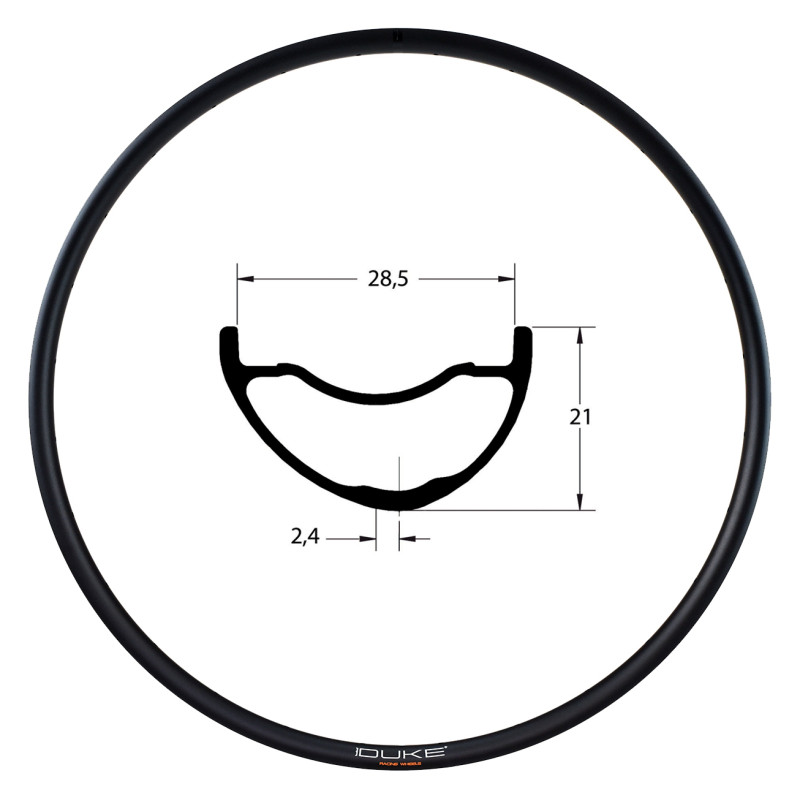

This rim features a new modern lower and wider geometry with an asymmetric profile and hookless sidewalls.
A large tire and rim width reduces inflation pressures. This improves performance on dry ground, comfort, grip and limits the rolling effects of the tire under the rim in the downforce.

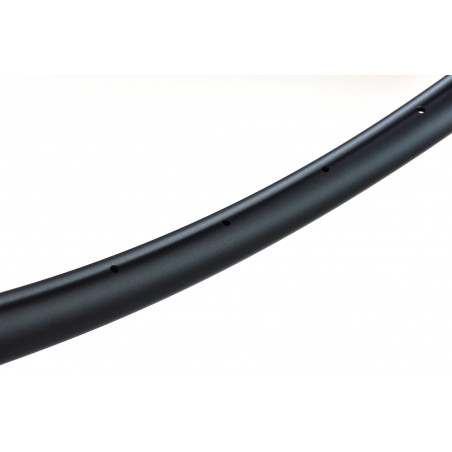

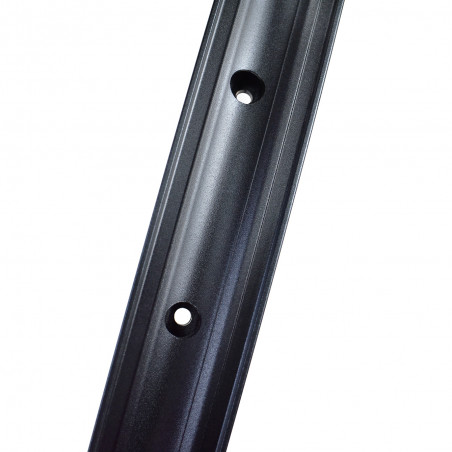

The rim holes are off-centered (offset), which allows the spoke brace angle to be further closed. Thus the rim is more stable and the lateral rigidity of the wheel is increased.
The tensions of the spokes between the two layers are more balanced, which guarantees better durability of the wheel.
The hookless walls (without hook) make it possible both to reinforce the rim and to reduce its weight. Anti-burp system: the tire bead is kept in position whatever its pressure, no risk of coming off the rim. DUKE owns its manufacturing tools.
Data sheet
- RIM MATERIAL
- ALU
- RIM PROFILE
- ASYMMETRICAL
- RIM HEIGHT (MM)
- 21
- SYSTEM MAX WEIGHT (KG)
- 150
- INSIDE WIDTH (MM)
- 28.6
- TYPE OF BRAKING
- DISC
- MAX STRAIN (N)
- 1150.0
- PRACTICE TYPE
- ALL MOUNTAIN E-BIKE
AM
DH
E-BIKE ENDURO
END
TANDEM MTB
VAE XC - NIPPLE POSITION
- EXTERNAL
- NIPPLE HEIGHT (MM)
- 14.0
- REINFORCED RIM
- NO
- TYPE OF TYRE
- CLINCHER
TUBELESS - VALVE HEIGHT (MM)
- 34
- TAPE WIDTH (MM)
- 30.0
- MAX PRESSURE (BAR)
- 2.6B WITH 2.40" TYRE
- ERD JANTE(S)
- FS HD 27,5 : 558
FS HD 29" : 596 - ETRTO (MM)
- 584.0
622.0 - RIM OFFSET (MM)
- 2.4
- MOUNTING WITH WASHERS
- NO
- POSITION
- FRONT
REAR - TYRE SECTION RANGE
- 48MM 1,90" / 66MM 2,60"
- STICKERS RANGE
- DUKE SERIE2 L
- STICKER TYPE
- L50
- WARRANTY
- 2 YEARS
