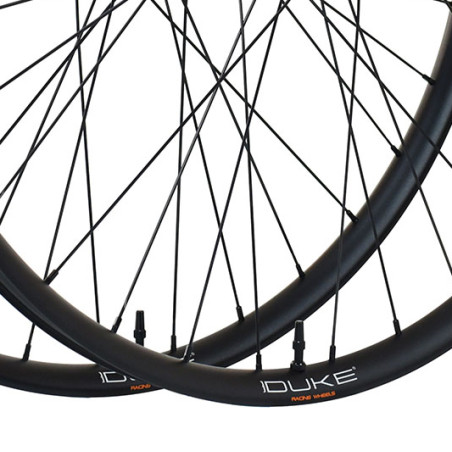

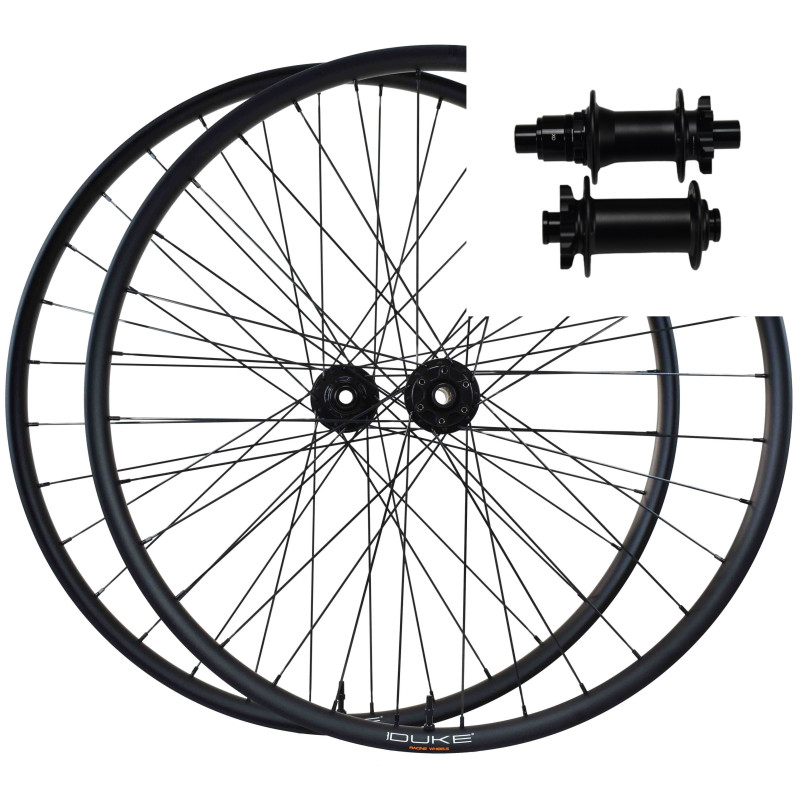

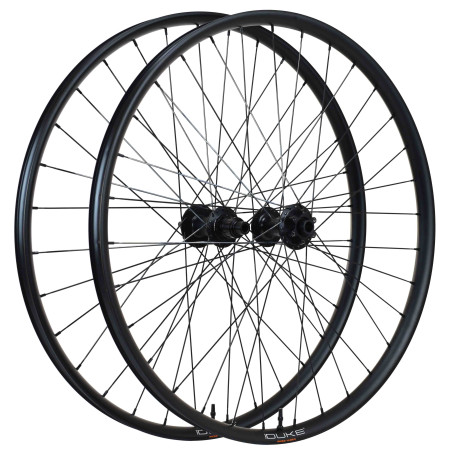

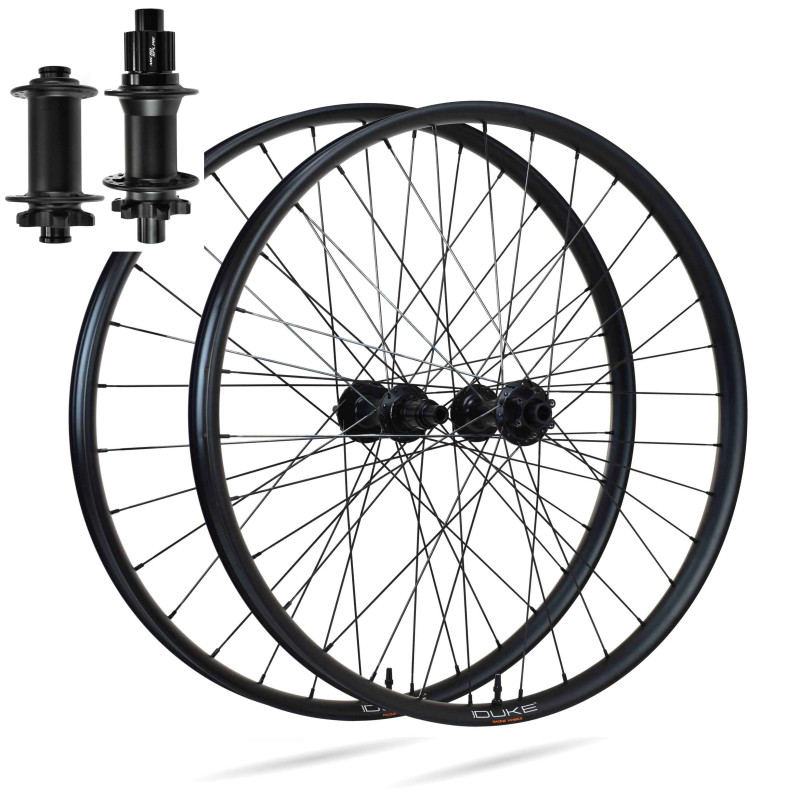

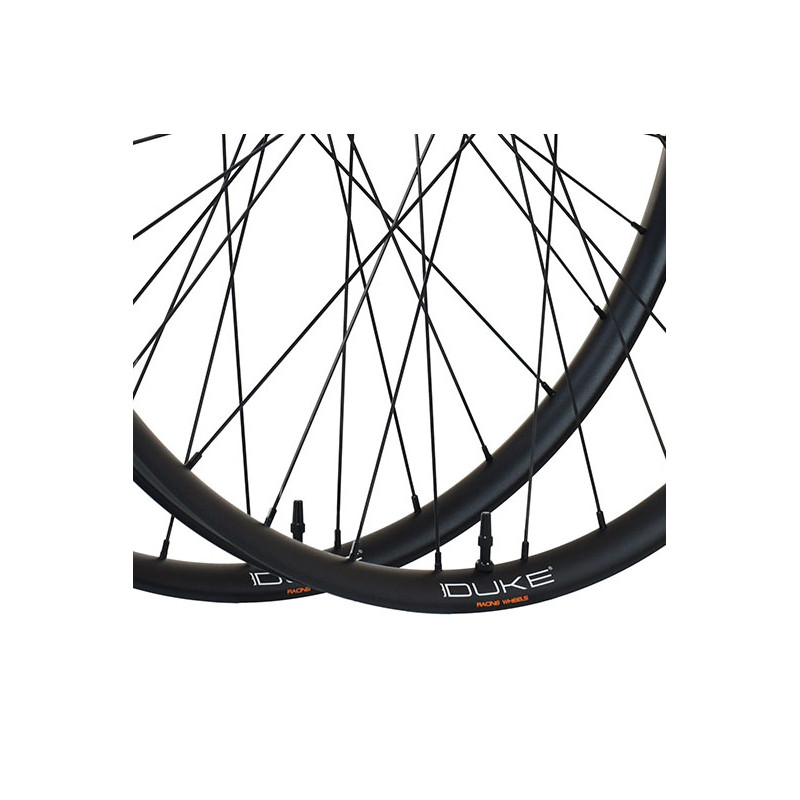

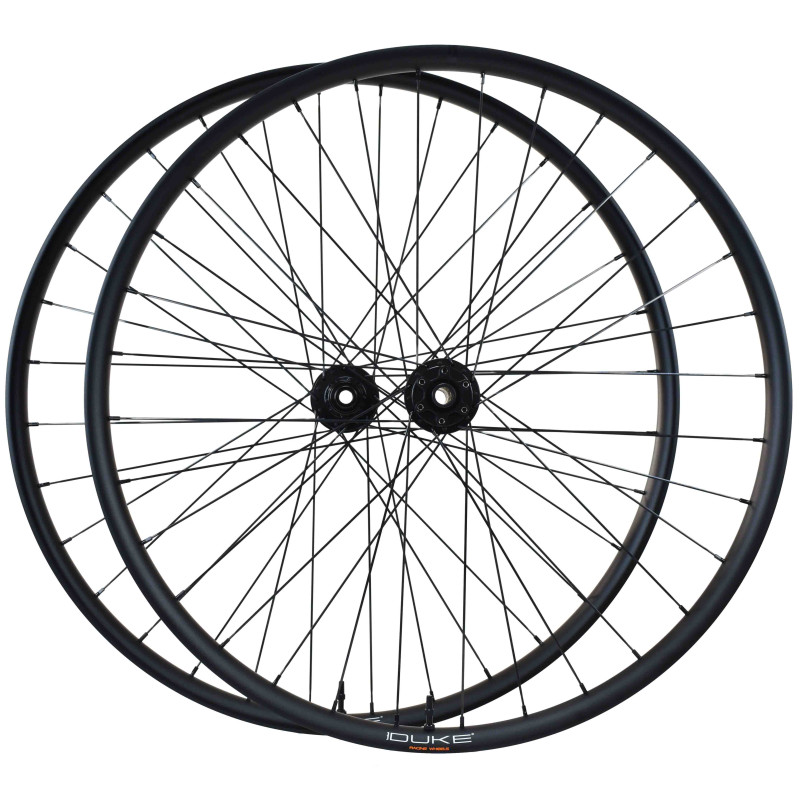

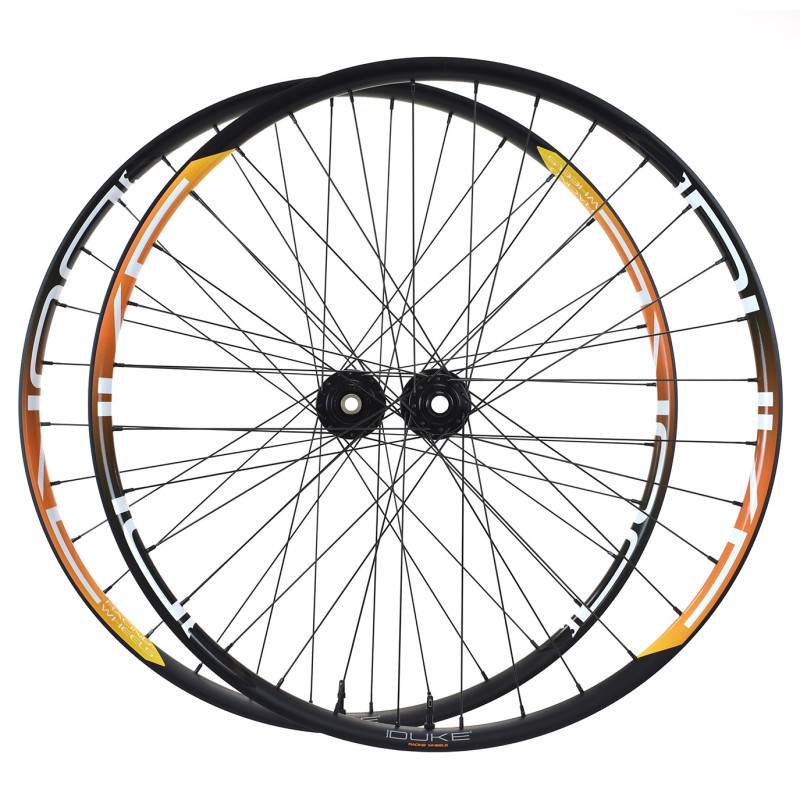

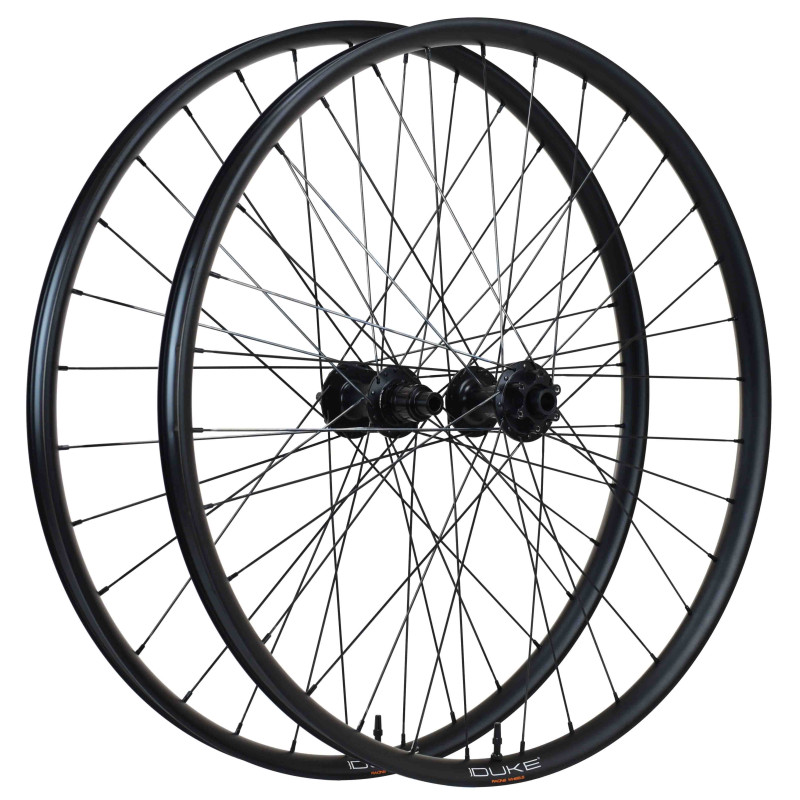

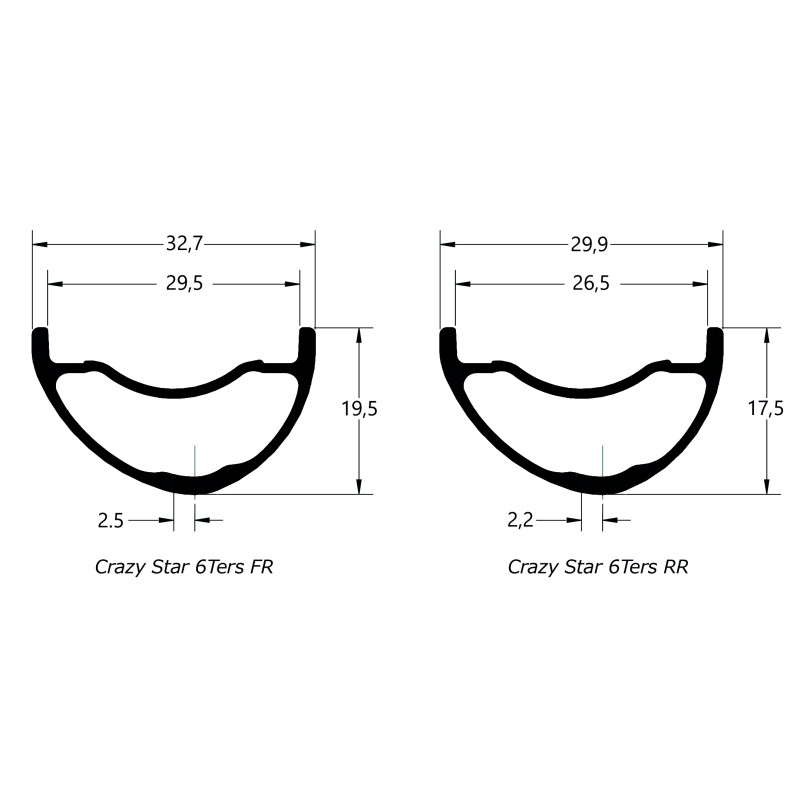

They are characterized by a lateral rigidity adapted to this use and a very good strength. The weight remains low thanks to its profile and the Dynamal aluminum used. These rims feature a new modern lower and wider geometry with an asymmetric profile and hookless sidewalls. A large tire and rim width reduces inflation pressures. This improves performance on dry ground, comfort, grip and limits the rolling effects of the tire under the rim in the downforce. The front and rear widths are differentiated (6TERS concept): the greater width at the front will give a larger volume to the tire to provide more grip in the supports. The rear rim has a smaller section to improve comfort and impact resistance. The rim holes are off-centered (offset), which allows the spokes brace angle to be further closed. Thus the rim is more stable and the lateral stiffness of the wheel is increased. The tensions of the spokes between the two layers are more balanced, which guarantees better durability of the wheel. The hookless walls (without hook) make it possible both to reinforce the rim and to reduce its weight. Anti-burp system: the tire bead is kept in position whatever its pressure, no risk of air loss in the corners. DUKE owns its manufacturing tools. Technologies: 6TERS, Anti-burp; Asymmetric; Hookless; Dynamic; Oriented drillings; TLR; Crazy; Star; Duke French brand
Sapim Spokes
Sapim is THE go-to spoke brand, manufactured in Belgium since 1918. Several spoke models are available, depending on compatibility with your riding style and chosen rim:
Sapim CX-Ray: flat spoke, very light, durable, aerodynamic, and offers a very dynamic ride feel (309g / 64 pcs / 292mm)
Sapim CX-Sprint: flat spoke similar to the CX-Ray but thicker for even more stiffness (373g / 64 pcs / 292mm)
Sapim D-Light: round spoke, light and durable, with a central section diameter of 1.65mm, good value for money (344g / 64 pcs / 292mm)
Sapim Race: round spoke, strong and stiff with a central section diameter of 1.8mm (408g / 64 pcs / 292mm)
Nipples
Aluminum nipples with locking thread, available in 16 colors: black, red, silver, metallic grey, blue, aqua blue, gold, light gold, dark green, mint syrup green, lime green, lilac, pink, fuchsia pink, orange, and oil slick.
Accessories
The wheels are delivered fully assembled with valves and rim tape installed, four spare spokes and nipples, and an assembly certificate.
TECHNOLOGIE
SERVICE
Garantie
Tous les montages de roues et tous les produits ont une garantie légale des vices cachés et de conformité de 2 ans à compter de la date d’achat, à l’exception des jantes carbone DUKE qui bénéficient d’une garantie commerciale étendue à 3 ans.
Ce service de Crash Replacement est valable à vie, sans supplément, et quel que soit le rang du propriétaire.
Le vendeur de roues d’occasion pourra céder ce service Crash Replacement à l’acheteur (c’est un argument de vente 😊). Des roues achetées d’occasion peuvent donc bénéficier du Crash Replacement.
