DUKE RIM BACCARA 45C UD MAT

Data sheet

RIM DIAMETER

700C

HOLES NUMBER

24

RIM MATERIAL

CARBON

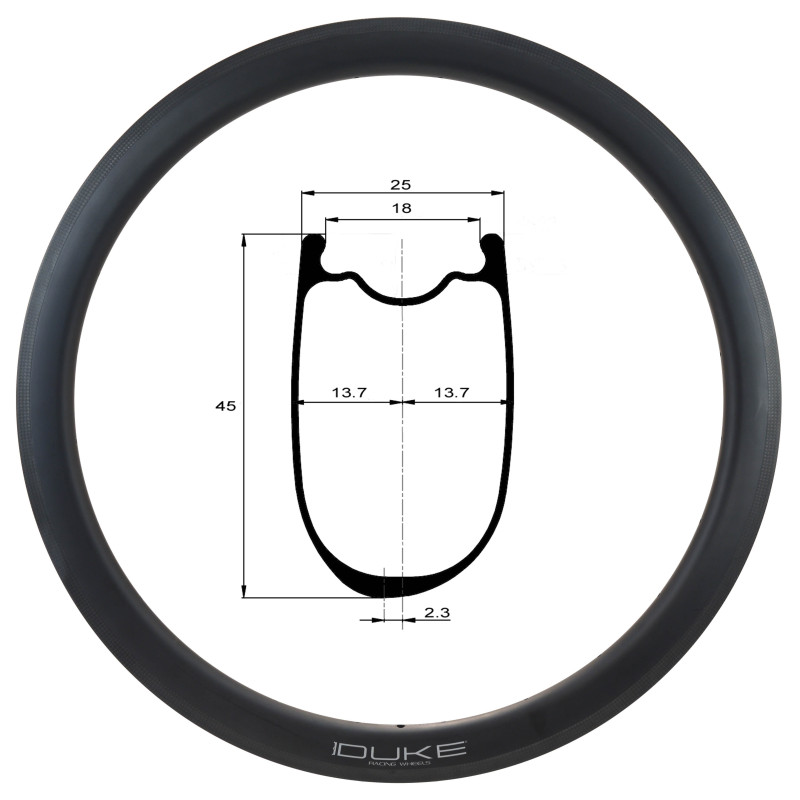

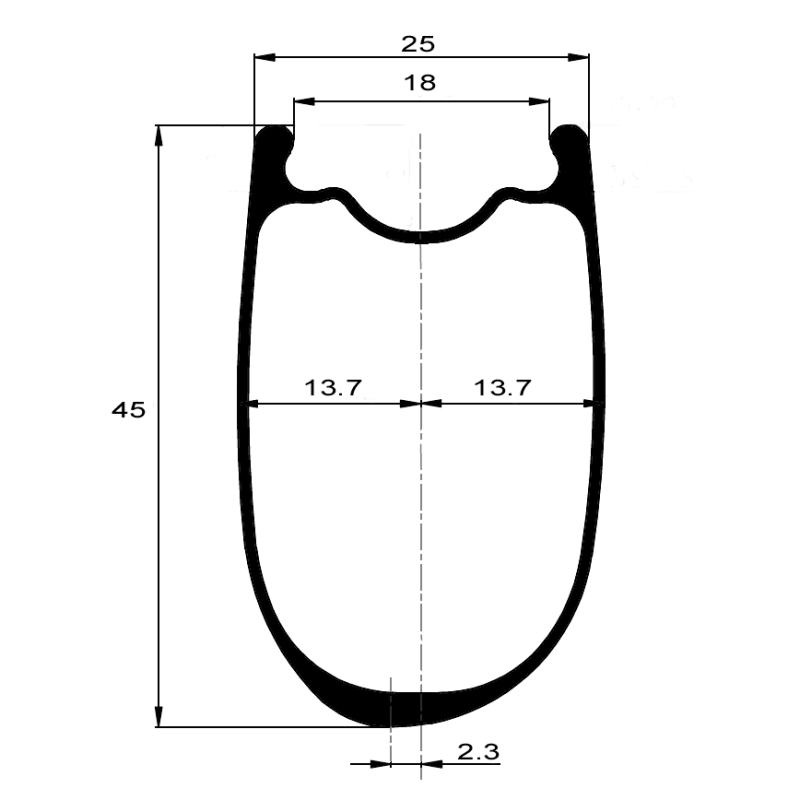

RIM PROFILE

ASYMMETRICAL

RIM HEIGHT (MM)

45

SYSTEM MAX WEIGHT (KG)

105.0

INSIDE WIDTH (MM)

18.0

OUTER WIDTH (MM)

26.0

RIM FINISH

UD MAT

TYPE OF BRAKING

BRAKE PADS

MAX STRAIN (N)

1200.0

PRACTICE TYPE

CX
ROAD
TRIATHLON&CLM

NIPPLE POSITION

EXTERNAL

NIPPLE HEIGHT (MM)

16.0

TYPE OF TYRE

TUBELESS OU CHAMBRE À AIR

VALVE HEIGHT (MM)

63

TAPE WIDTH (MM)

22.0

MAX PRESSURE (BAR)

8.5B WITH 25MM TYRE

ERD JANTE(S)

552.0

ETRTO (MM)

622.0

RIM OFFSET (MM)

2.3

MOUNTING WITH WASHERS

NO

POSITION

REAR

TYRE SECTION RANGE

23MM 0,90" / 38MM 1,50"

STICKER TYPE

BACCARA 45 3K

RIM BRAND

JANTE DUKE

WARRANTY

2 YEARS
