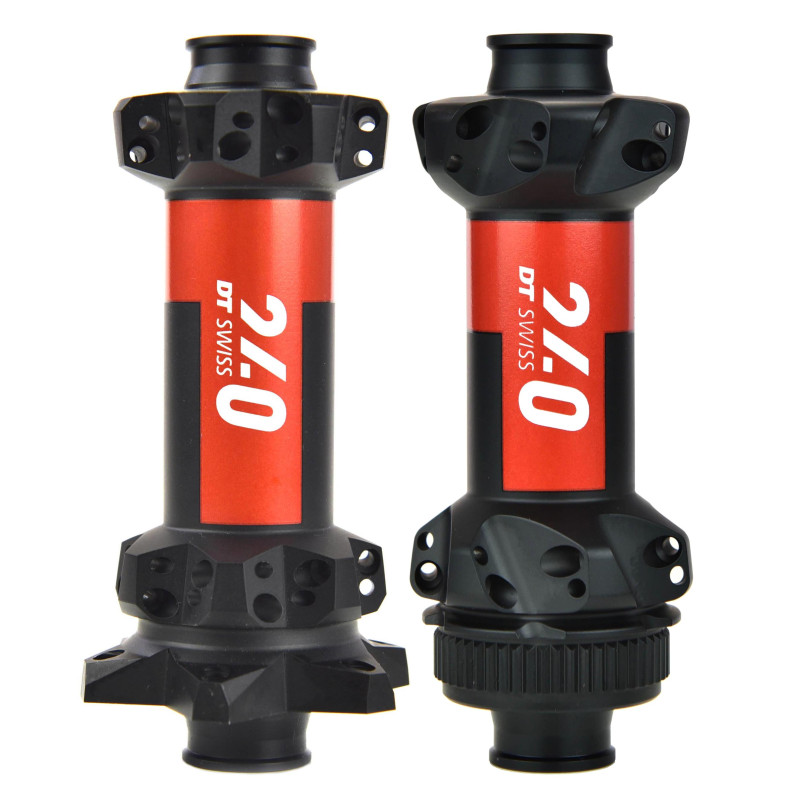

DT SWISS 240 SP DISC FRONT HUB

Name: DT SWISS 240 SP DISC FRONT HUB
Brand: DT SWISS
SKU: MOYEU DT240 EXP SP AV
Price: 201.1 EUR
Availability: InStock

Variantes disponibles

FRONT AXLE

DISC MOUNTING

HOLES NUMBER

104 g

€201.10 Tax included

0 In stock

Expected shipping date: 16/06/2025

Quantity

dealer locator

The competitively priced DT Swiss sprocket hub for optimal performance on all types of terrain. The hub that embodies Swiss performance and precision. This hub has won everything from grand tours to local criteriums. This legendary rock hub is built to last for years and perform.

Data sheet

TYPE OF BRAKING: DISC
SPOKES ANCHORAGE: STRAIGHT PULL
MAX STRAIN (N): 1300.0
PRACTICE TYPE: BEACH RACE
CX
GRAVEL BIKE
MOUNTAIN
ROAD
TRIATHLON&CLM
XC
XC ENGAGED
BEARING MATERIAL: STEEL
BEARING(S) SIZE: 2X 1526
POSITION: FRONT
LEFT / RIGHT FLANGE DIAMETER (MM): DT SWISS 240 100X12 CL SP - 37,2 / 37
DT SWISS 240 100X15 CL SP - 35,5 / 35,5
DT SWISS 240 100X15 IS SP - 35,5 / 35,5
DT SWISS 240 BOOST CL SP - 35,5 / 35,5
DT SWISS 240 BOOST IS SP - 35,5 / 35,5
LEFT / RIGHT POSITION (MM): DT SWISS 240 100X12 CL SP - 22,1 / 35,2
DT SWISS 240 100X15 CL SP - 21,6 / 34,8
DT SWISS 240 100X15 IS SP - 21,6 / 34,8
DT SWISS 240 BOOST CL SP - 26,5 / 39,7
DT SWISS 240 BOOST IS SP - 26,5 / 39,7
OFFSET LEFT AND RIGHT HOLES: DT SWISS 240 100X12 CL SP - 1,5 / 1,75
DT SWISS 240 100X15 CL SP - 1,4 / 0,15
DT SWISS 240 BOOST CL SP - 1,4 / 0,15
DT SWISS 240 BOOST IS SP - 1,4 / 0,15
LEFT DIAMETER (MM): 35.5
37.2
RIGHT DIAMETER (MM): 35.5
37.0
LEFT POSITION: 21.6
22.1
26.5
RIGHT POSITION: 34.8
35.2
39.7
HOLE DIAMETER (MM): 0.0
OFFSET LEFT HOLES: 1.4
1.5
OFFSET RIGHT HOLES: 0.15
1.75
STICKERS RANGE: DT SWISS 240 SÉRIE2
TYPE DE SYSTÈME ROUE LIBRE: SANS
HUB BRAND: MOYEU DT SWISS
WARRANTY: 2 YEARS
