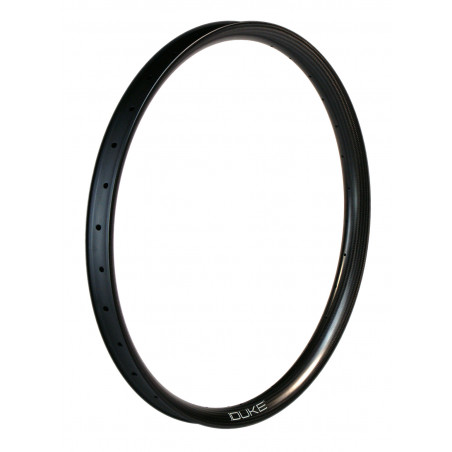

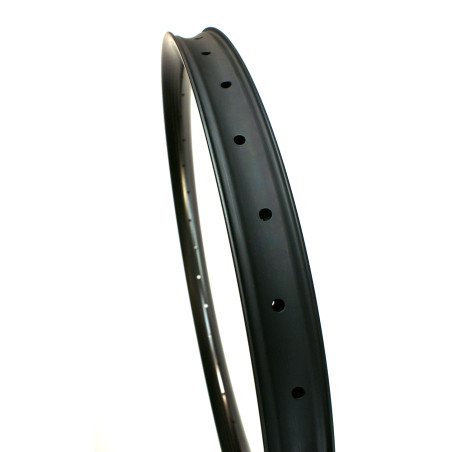

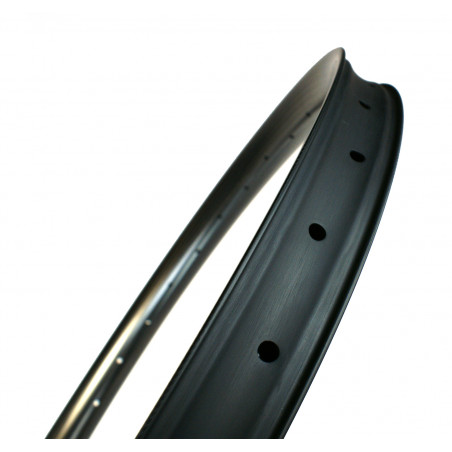

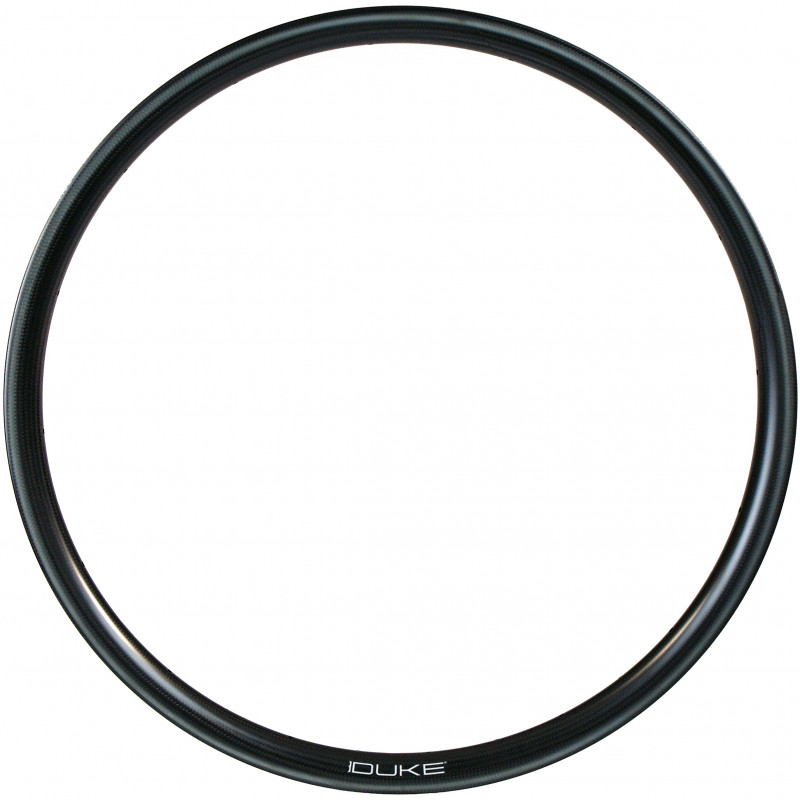

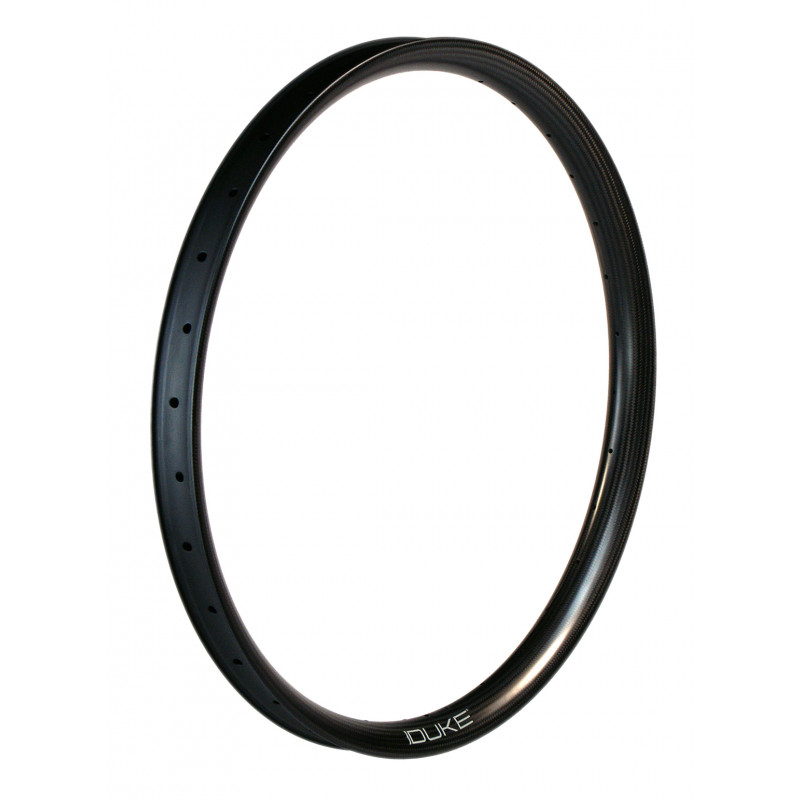

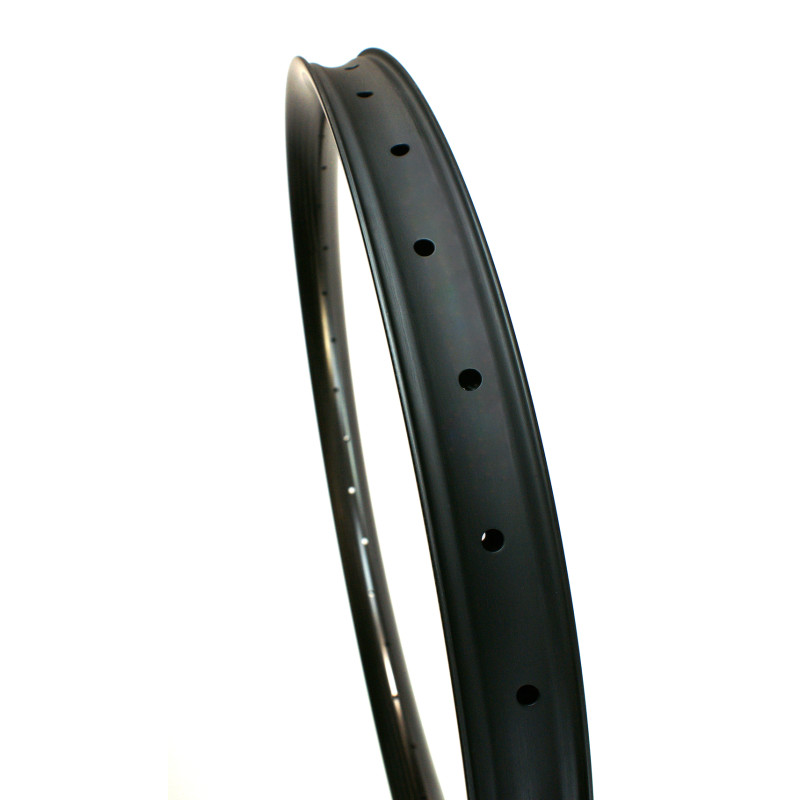

DUKE RIM MARY JACK 3K RF

27.5"+ Carbon rim for All Mountain (reinforced)

Points Forts

LIGHTNESS
ASYMETRY
LATERAL RIGIDITY
NERVOSITY
INTERIOR WIDTH 40 mm

Variantes disponibles

RIM DIAMETER

HOLES NUMBER

RIM PROFILE

RIM FINISH

530 g

€536.00 Tax included

4 In stock

Expected shipping date: 22/04/2024

Quantity

dealer locator

DUKE RIM MARY JACK

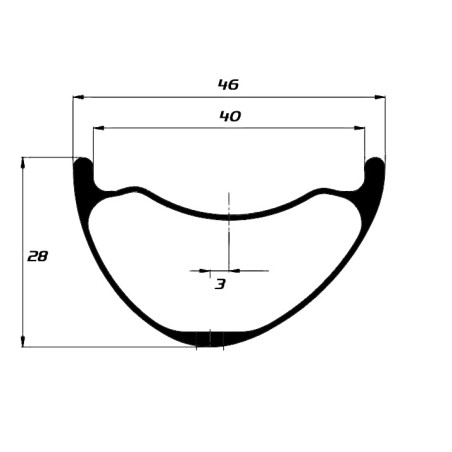

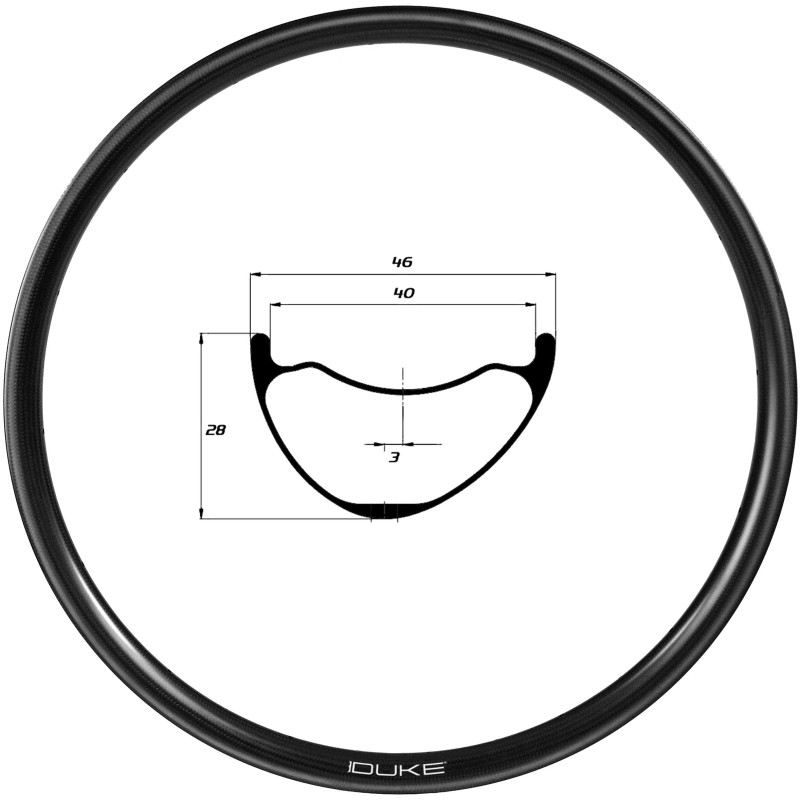

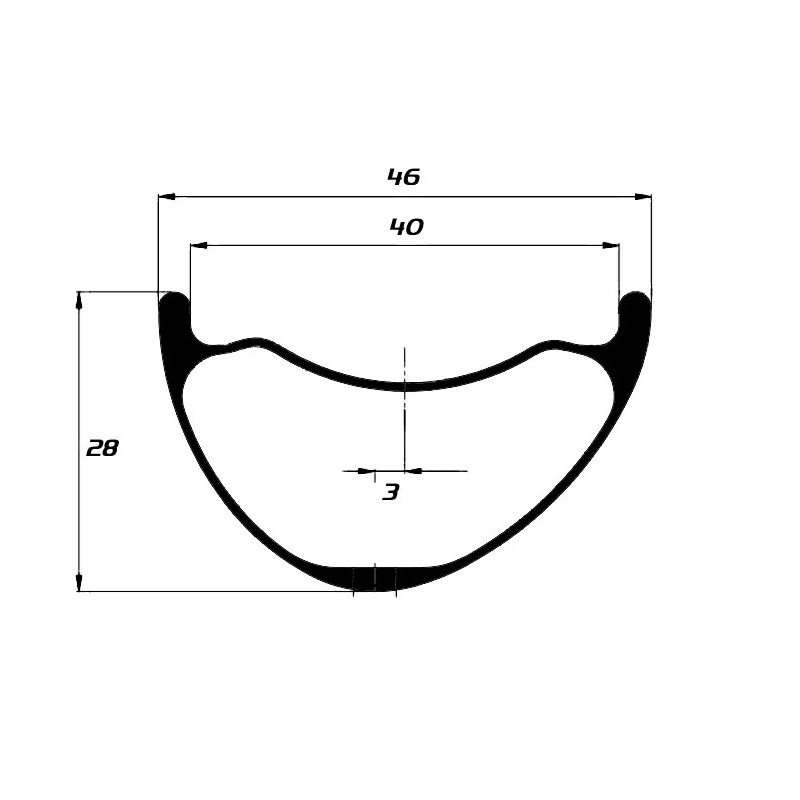

Made for All Mountain. The Hookless side, coupled with its width of 28mm increase its rigidity and its resistance to the impacts. The DUKE Mary Jack in carbon has an ASYMMETRICAL profile (offset of 3 mm) which allows to increase the lateral stiffness of the wheel without gaining weight. The internal width between the hooks / large walls is 40 mm. This gives more volume to the tires and improves efficiency, comfort and grip in turns. A wide rim also means being able to use thinner and lighter tires while maintaining comfort, The softness and grip provided by a larger volume of air. Hookless sides: the robustness of the rim is superior compared to a carbon rim with hooks. This technology has been used successfully on our rims since 2011. Anti-burp system: the heel of the tire is held in position whatever its pressure, no risk of "out rim". Tubeless or inner tube.

Technology

Hookless
This technology has been successfully used on our MTB rims since 2011. It reduces rim weight. Strength is improved. The tire is slightly bigger. Carbon rims are simpler and more economical to manufacture.
AntiBurp
Thanks to this antiburp, the tire bead is held in position at all low pressures and under all loads, so there's no risk of the bead sliding off the rim or losing pressure even when cornering hard. Two edges prevent the tire beads from sliding horizontally towards the inside of the rim. Even after a puncture, the tire stays in place on the rim
Anti-pinch
Rim’s sidewalls are thickened to prevent cut of tires during impacts.
Tubeless
Our Tubeless compatible rims (UST, Tubeless Ready and Notubes), only require some Duke rim tape and a Tubeless-ready valve. They can also be used in a classic clincher set up (tyre & inner tube).

Data sheet

RIM DIAMETER: 27,5"
HOLES NUMBER: 32
RIM MATERIAL: CARBON
RIM PROFILE: ASYMMETRIC
INSIDE WIDTH (MM): 40.0

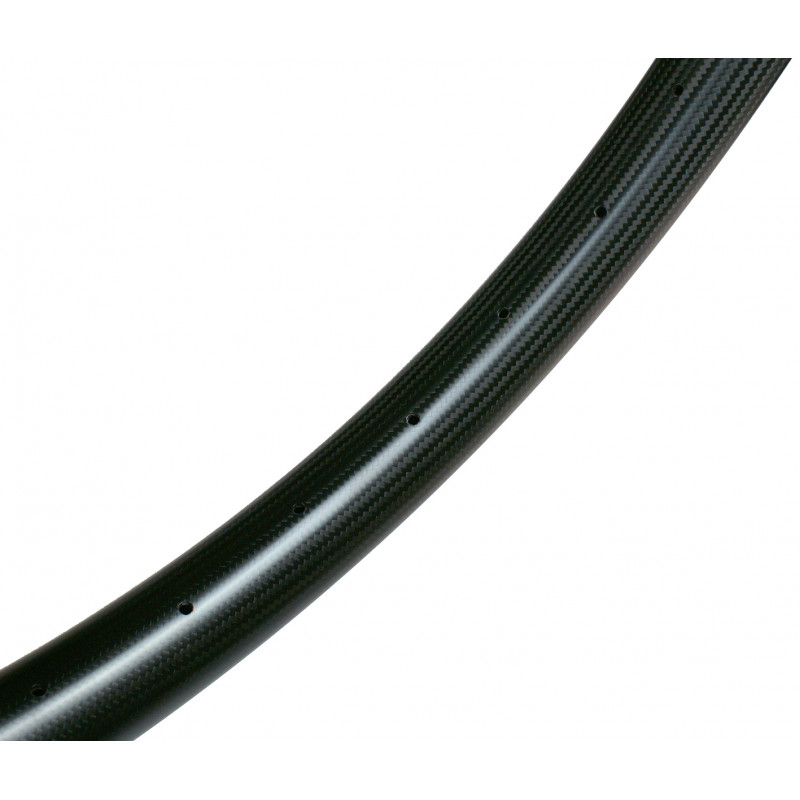

RIM FINISH: 3K TWILL SATIN
TYPE OF BRAKING: DISC
MAX STRAIN (N): 1200.0
PRACTICE TYPE: ALL MOUNTAIN E-BIKE
AM
E-BIKE ENDURO
END
TANDEM MTB
VAE XC
XC
XC ENGAGED
NIPPLE POSITION: EXTERNAL
NIPPLE HEIGHT (MM): 14.0
REINFORCED RIM: YES
POSITION: FRONT
REAR
TYPE OF TYRE: CLINCHER
TUBELESS
VALVE HEIGHT (MM): 44
TAPE WIDTH (MM): 40.0
MAX PRESSURE (BAR): 2,5B
ERD JANTE(S): MJ : 547
SYSTEM MAX WEIGHT (KG): 130
RIM HEIGHT (MM): 28
ETRTO (MM): 584.0
RIM OFFSET (MM): 3.0
MOUNTING WITH WASHERS: NON
TYRE SECTION RANGE: 66MM 2,60" / 89MM 3,50"
WARANTEE: 2 YEARS
