DT SWISS RIM R 500 DB

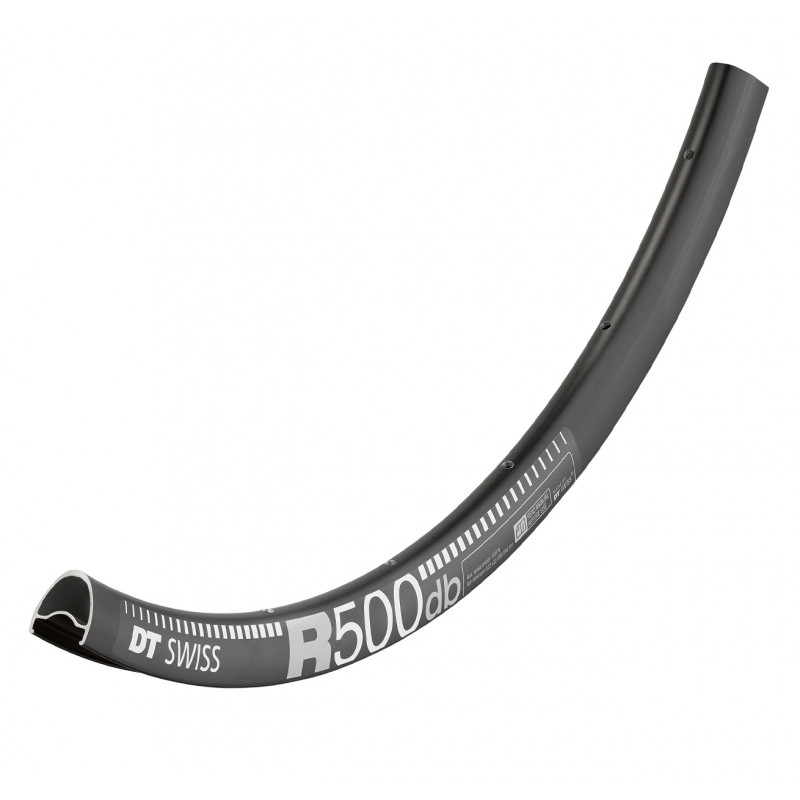

DT SWISS RIM R 500 DB versatile Tubeless aluminum wheel dedicated to the road and cross disc.
DT SWISS R500 db
Extreme reliability for everyday use and thousands of kilometres without a shadow in sight: the R500 rim offers all this and more at an unbeatable price-performance ratio.
Technology
-
Tubeless
Our Tubeless compatible rims (UST, Tubeless Ready and Notubes), only require some Duke rim tape and a Tubeless-ready valve. They can also be used in a classic clincher set up (tyre & inner tube).
Data sheet
- RIM MATERIAL
- ALU

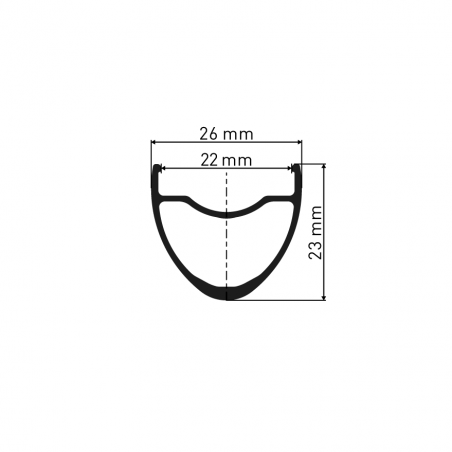

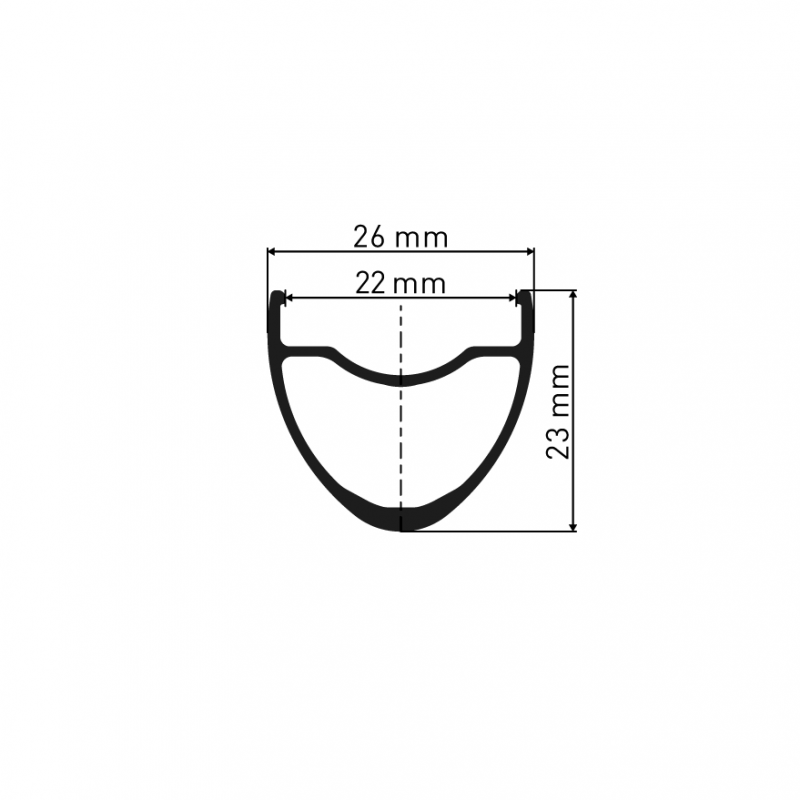

- RIM PROFILE
- SYMMETRIC
- INSIDE WIDTH (MM)
- 22.0
- TYPE OF BRAKING
- DISC
- MAX STRAIN (N)
- 1200.0
- PRACTICE TYPE
- ROAD
ROAD E-BIKE
TANDEM ROAD
TRACK
TRIATHLON&CLM - NIPPLE POSITION
- EXTERNAL
- NIPPLE HEIGHT (MM)
- 14.0
- REINFORCED RIM
- NO
- POSITION
- FRONT
REAR - TYPE OF TYRE
- CLINCHER
TUBELESS - VALVE HEIGHT (MM)
- 44
- TAPE WIDTH (MM)
- 24.0
- ERD JANTE(S)
- 596.0
- SYSTEM MAX WEIGHT (KG)
- 130
- RIM HEIGHT (MM)
- 23
- ETRTO (MM)
- 622.0
- RIM OFFSET (MM)
- 0.0
- MOUNTING WITH WASHERS
- NON
- TYRE SECTION RANGE
- 28MM 1,10" / 56MM 2,20"
- STICKERS RANGE
- SANS
- WARANTEE
- 2 YEARS
