DUKE RIM ROAD RUNNER X 23

Duke Road Runner X 23 rim for road disc use

Variantes disponibles
400 g
€129.00 Tax included
190 In stock

Expected shipping date: 30/04/2024

Quantity

favorite_border favorite

DUKE ROAD RUNNER X 23 ARTISANAL RIM

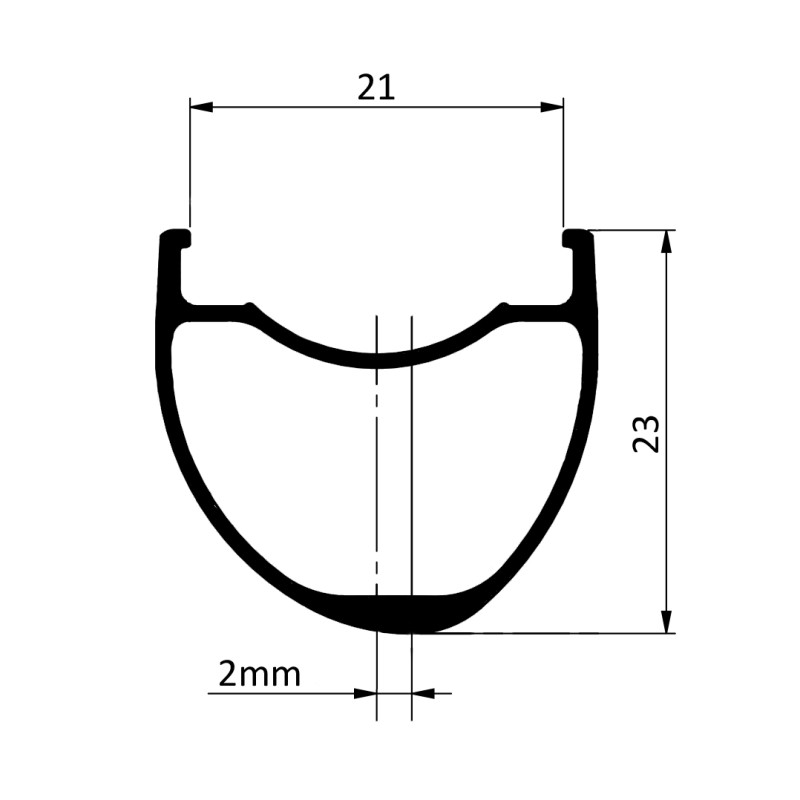

The DUKE Road runner X 23 rim is designed, tested in France, DUKE is the exclusive owner of the manufacturing tools. The DUKE Road Rim Runner X 23 disc Has a profile height of 23mm. ASYMMETRIC: As the front disc brack & the number of gears increases, The cassette-side flange of the hub is increasingly "pushed" towards the inside of the wheel have an asymetrical profil (2mm offset) Which makes it possible to increase the lateral stiffness of the wheel without gaining weight. The holes in the rim are off-centered, this makes it possible to close more the umbrella formed by the Spokes. Thus the spokes ensure a better maintenance of the rim and the lateral stiffness of the wheel is increased. Inner width 21mm. This gives more volume to the tires and improves efficiency, comfort and cornering grip. A wide rim also means that you can use finer, lighter tires while maintaining the comfort, softness and grip provided by a larger volume of air.

Data sheet

RIM MATERIAL
ALU
RIM PROFILE
ASYMMETRICAL
INSIDE WIDTH (MM)
21.0
TYPE OF BRAKING
DISC
MAX STRAIN (N)
1100.0
PRACTICE TYPE
CX
GRAVEL BIKE
MOUNTAIN
ROAD
TRIATHLON&CLM
NIPPLE POSITION
EXTERNAL
NIPPLE HEIGHT (MM)
14.0
REINFORCED RIM
NO
TYPE OF TYRE
CLINCHER
TUBELESS
POSITION
FRONT
REAR
VALVE HEIGHT (MM)
44
TAPE WIDTH (MM)
24.0
MAX PRESSURE (BAR)
6.5B WITH 28MM TYRE
ERD JANTE(S)
RR23X : 592
SYSTEM MAX WEIGHT (KG)
110
RIM HEIGHT (MM)
23
ETRTO (MM)
622.0
RIM OFFSET (MM)
2.0
MOUNTING WITH WASHERS
CONSEILLÉ SUP 90KG (PILLAR 7048)
TYRE SECTION RANGE
25MM 1,00" / 46MM 1,80"
STICKERS RANGE
DUKE SERIE2 L
WARANTEE
2 YEARS
